524191-E
ObsoleteTE Connectivity AMP Connectors
SRCBUG A 6,20 * 2 CSI 206 E-HD A
524191-E
ObsoleteTE Connectivity AMP Connectors
SRCBUG A 6,20 * 2 CSI 206 E-HD A
Description
General part information
524191-E

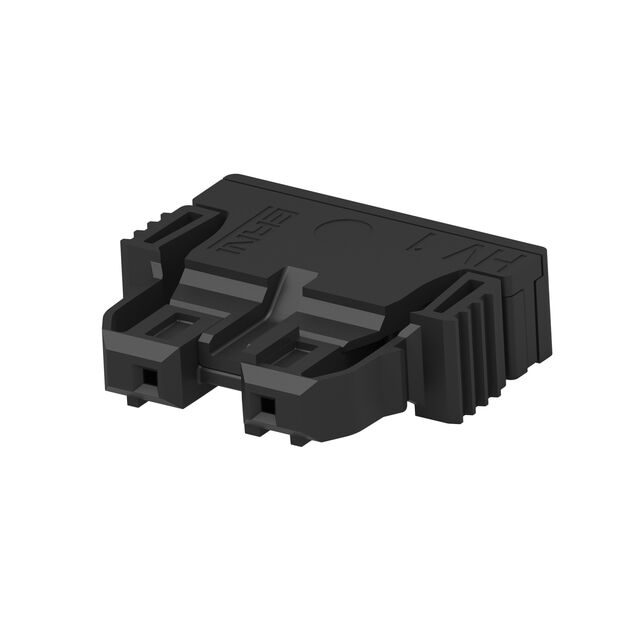

2 Rectangular Connectors - Housings Receptacle Black 0.244" (6.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 524191-E |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.244 in |
