LJA36600U31X
ActiveSCHNEIDER ELECTRIC

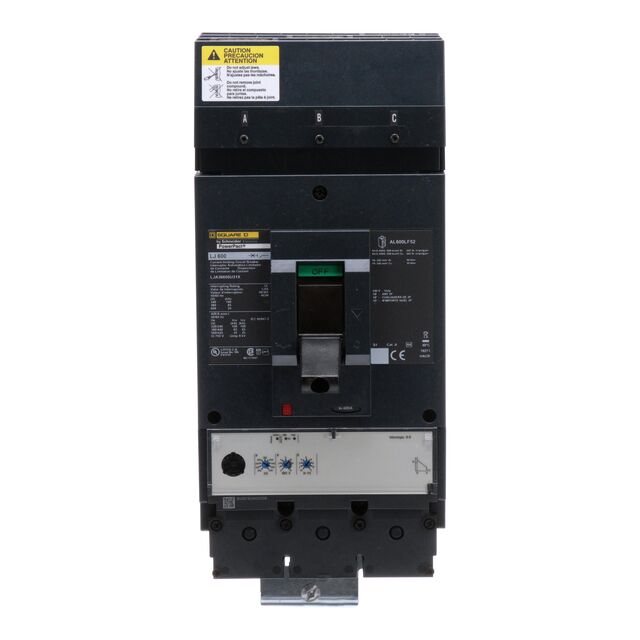

THERMAL MAGNETIC CIRCUIT BREAKER, IP40, POWERPACT SERIES, 600 A, 3 POLE, 600 V, BRACKET MOUNT
LJA36600U31X
ActiveSCHNEIDER ELECTRIC
THERMAL MAGNETIC CIRCUIT BREAKER, IP40, POWERPACT SERIES, 600 A, 3 POLE, 600 V, BRACKET MOUNT
Description
General part information
LJA36600U31X
Circuit Breaker Solid State 600A 600 V AC DC Toggle DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | LJA36600U31X |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | UL, CSA |
| Breaker Type | Solid State |
| Current Rating | 600 A |
| Illumination | Green, Orange, Red |
| Mounting Type | DIN Rail |
| Number of Poles | 3 |
| Voltage Rating - AC | 600 VAC |
