LCAD30024
ActivePasternack
BNC TWINAX MALE TO BNC TWINAX MA
LCAD30024
ActivePasternack
BNC TWINAX MALE TO BNC TWINAX MA
Description
General part information
LCAD30024

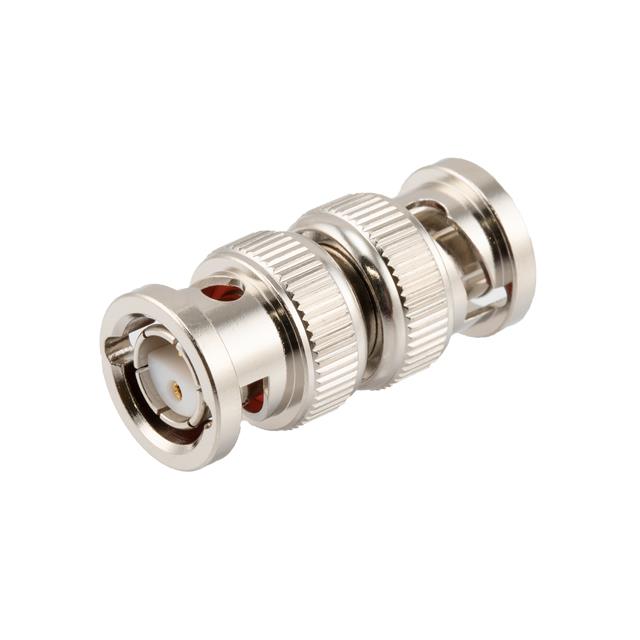

Adapter Coaxial Connector BNC Twinaxial Plug, Male Pin To BNC Twinaxial Plug, Male Pin 78 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAD30024 |
|---|---|
| Adapter Series | BNC Twinaxial to BNC Twinaxial |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Twinaxial Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | BNC Twinaxial Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Impedance | 78 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
