RF ANT 700MHZ/750MHZ FLAT PATCH
1002289
ActiveKYOCERA AVX
RF ANT 700MHZ/750MHZ FLAT PATCH
Description
General part information
1002289

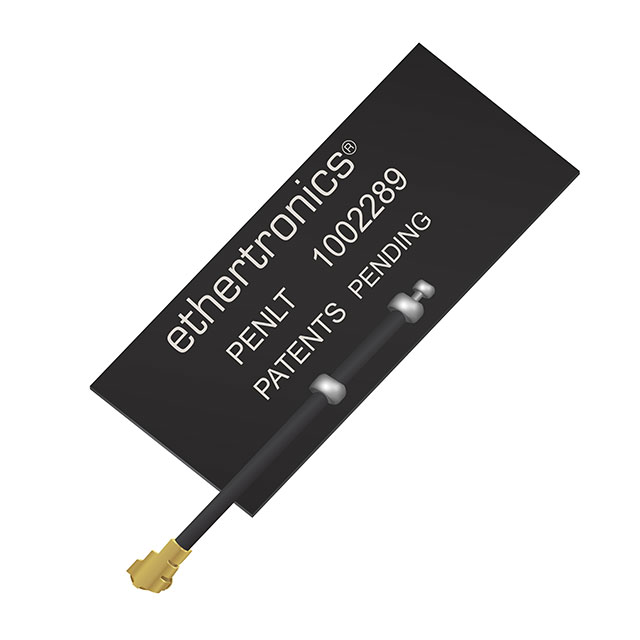

RF ANTENNA CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002289 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | UMTS, WCDMA, PCS, HSDPA, DCS, GSM, GPRS, CDMA, EDGE, LTE |
| Features | 25mm, Cable |
| Frequency (Center/Band) | 2.7GHz, 1.9GHz, 2.1GHz, 850MHz, 750MHz, 700MHz, 900MHz, 1.8GHz |
| Frequency (Center/Band) - 1 | 700 MHz |
| Frequency (Center/Band) - 2 | 750 MHz |
| Frequency (Center/Band) - 3 | 850 MHz |
| Frequency (Center/Band) - 4 | 900 MHz |
| Frequency (Center/Band) - 5 | 1.8 GHz |
| Frequency (Center/Band) - 6 | 1.9 GHz |
| Frequency (Center/Band) - 7 | 2.1 GHz |
| Frequency (Center/Band) - 8 | 2.7 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 700 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Height (Max) | 0.049 in |
| Mounting Type | Adhesive |
| Number of Bands | 8 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2.5 |
