H8MMS-3436M
ActiveAssmann WSW Components
DIP CBL - HHDM34S/AE34M/HHDM34S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H8MMS-3436M | H8MMS-34 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed | DIP to DIP, Reversed |
| Contact Finish | Tin | Tin |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 34 | 34 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Board In, Socket (0.1") | Board In, Socket (0.1") |
H8MMS-34 Series
DIP CBL - HHDM34S/AE34M/HHDM34S
| Part | Number of Rows | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Usage | Contact Finish | Length [x] | Length [x] | Color | Number of Positions | Connector Type | Shielding | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components H8MMS-3418M | 2 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Board In, Socket (0.1") | Tin | 457.2 mm | 1.5 ft | Multiple, Ribbon | 34 | DIP to DIP, Reversed | Unshielded | IDC |
Assmann WSW Components H8MMS-3436M | 2 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Board In, Socket (0.1") | Tin | 914.4 mm | 3 ft | Multiple, Ribbon | 34 | DIP to DIP, Reversed | Unshielded | IDC |
Assmann WSW Components H8MMS-3436G | 2 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Board In, Socket (0.1") | Tin | 914.4 mm | 3 ft | 34 | DIP to DIP, Reversed | Unshielded | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.82 | |
| 10 | $ 7.07 | |||
| 25 | $ 6.68 | |||
| 50 | $ 6.51 | |||
| 100 | $ 6.19 | |||
| 250 | $ 5.54 | |||
| 500 | $ 5.21 | |||
| 1000 | $ 4.56 | |||
Description
General part information
H8MMS-34 Series

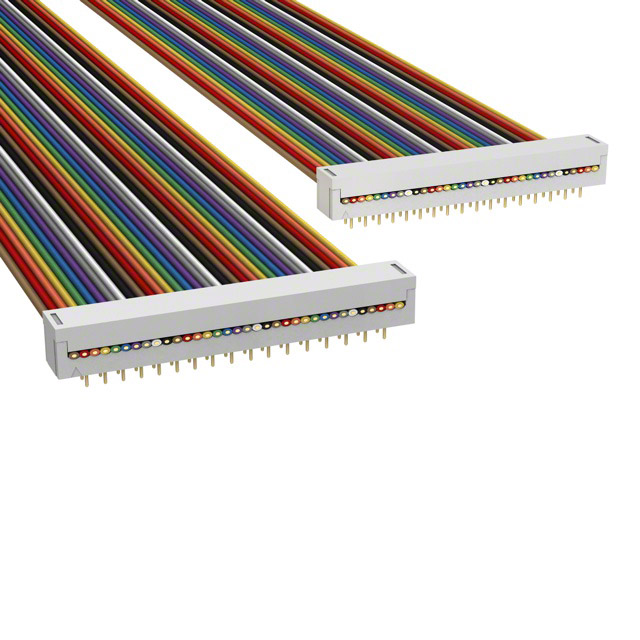

34 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
