45-190F.1000.113.108

Active

EAO

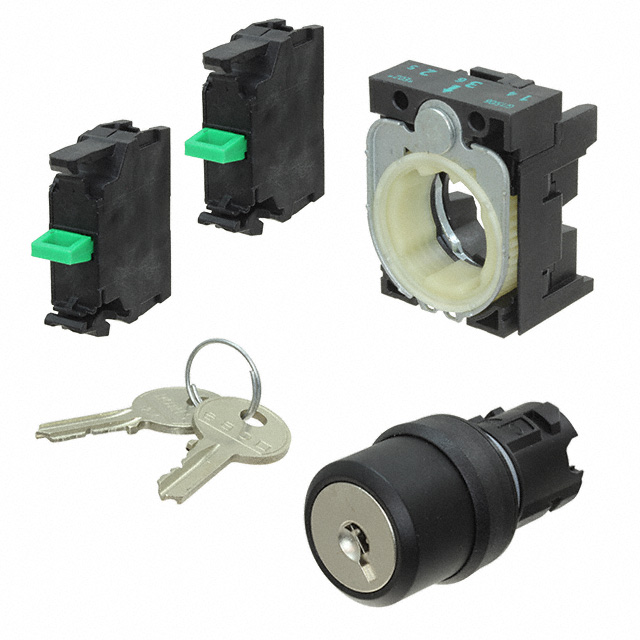

SWITCH KEYLCK 3POS DPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLCK 3POS DPST 10A 500V

Technical Specifications

Parameters and characteristics for this part

Specification	45-190F.1000.113.108

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	DPST-NO
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	10 A
Features	IP67, IP66, IP69K
Key Removable Positions	All
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

SWITCH KEYLCK 3POS DPST 10A 500V

Part	Angle of Throw	Contact Timing	Mechanical Life	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Contact Material	Current Rating (Amps)	Key Removable Positions	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Circuit	Features
EAO 45-190F.1000.113.108	45 °	Not Specified	1000000 Cycles	Flat Key	500 V	22.3 mm	Silver (Ag)	10 A	All	On-Off-On	70 °C	-25 °C	Screw Terminal	500 V	DPST-NO	IP66, IP67, IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 3 Position DPST-NO 10A (AC/DC) 500 VAC 500 VDC Panel Mount

Technical documentation and resources
