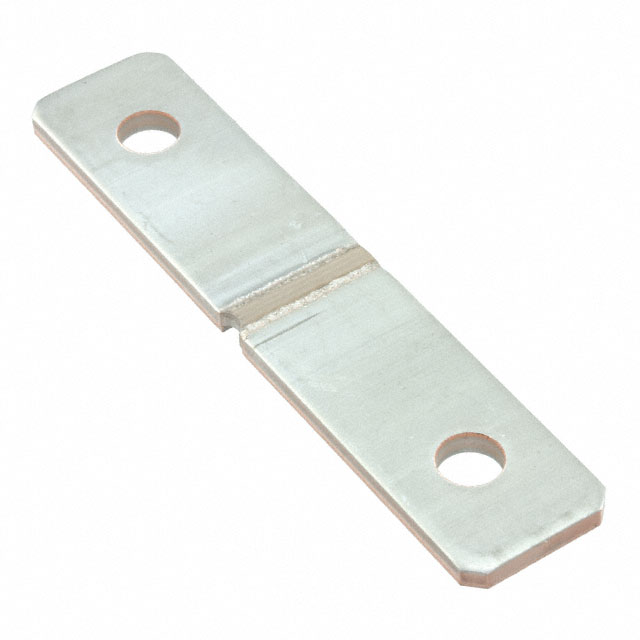

WSBS8518L0500JK14
ActiveVishay Dale
RESISTOR SHUNT 50 UOHM 5% 36W
WSBS8518L0500JK14
ActiveVishay Dale
RESISTOR SHUNT 50 UOHM 5% 36W
Description
General part information
WSBS8518L0500JK14
50 µOhms ±5% 36W Shunt, Battery Specialized Resistor Metal Element ±200ppm/°C Shunt Fixture, 60mm Pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | WSBS8518L0500JK14 |
|---|---|
| Applications | Automotive AEC-Q200 |
| Composition | Metal Element |
| Mounting Size | 60 mm |
| Mounting Type | Shunt Fixture, Pitch |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Power (Watts) | 36 W |
| Resistance | 50 µOhms |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
