CB0.81-2IPX4L-2.5IN-6O

Active

Lighthorse Technologies, Inc

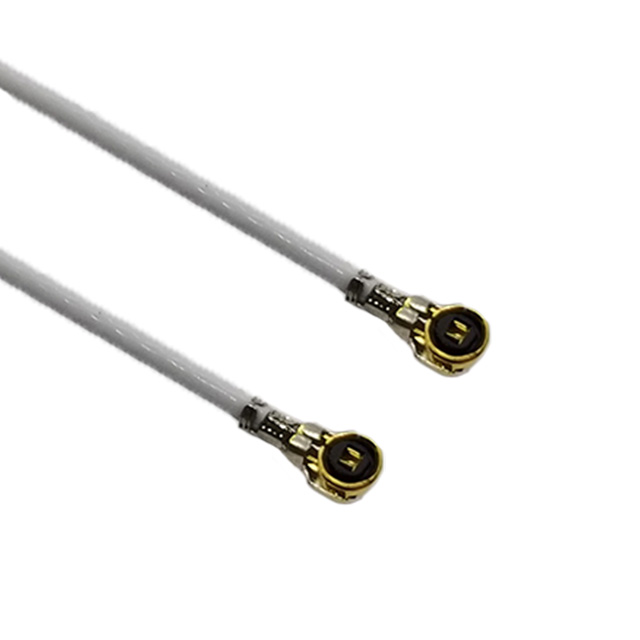

CBL ASSY MHF4L-MHF4L PL-PL 2.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB0.81-2IPX4L-2.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY MHF4L-MHF4L PL-PL 2.5"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.79
		10	$ 4.51
		25	$ 4.26
		50	$ 4.03
		100	$ 3.83
		250	$ 3.48
		500	$ 3.19
		1000	$ 2.95

Description

General part information

CB0.81 Series

Cable Assembly Coaxial IPEX MHF4L to IPEX MHF4L 0.81mm OD Coaxial Cable 2.500" (63.50mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB0.81-2IPX4L-2.5IN-6O	CB0.81 Series

1st Connector	IPEX MHF4L Plug, Right Angle	IPEX MHF4L Plug, Right Angle, U.FL (UMCC), Right Angle, I-PEX MHF1 Plug, IPEX MHF1 Plug, I-PEX MHF4L Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	IPEX MHF4L Plug, Right Angle	IPEX MHF4L Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), U.FL (UMCC), IPEX MHF1 Plug, Right Angle, I-PEX MHF4L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	Coaxial Cable	Coaxial Cable
Cable Type [diameter]	0.81 mm	0.81 mm
Color	White	White
Features	Opposite Orientation, Shielded	Shielded, Opposite Orientation
Frequency - Max [Max]	12 GHz	9 - 12 GHz
Length	-	1.5 - 12 "
Length	-	38.1 - 304.8 mm
Length [x]	63.5 mm	25.4 - 317.5 mm
Length [x]	2.5 in	1 - 12.5 in
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L to IPEX MHF4L, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC), I-PEX MHF1, IPEX MHF1 to U.FL (UMCC), IPEX MHF1, I-PEX MHF4L to I-PEX MHF4L

CB0.81 Series

CBL ASSY MHF4L-MHF4L PL-PL 1.5"

Part	1st Contact Gender	2nd Connector	Cable Impedance	Overall Impedance	Color	1st Connector Mounting Type	Style	Cable Type	Cable Type [diameter]	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	1st Connector	Features	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	Length [x]	Length [x]
Lighthorse Technologies, Inc CB0.81-2IPX4L-1.5IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz	1.5 "	38.1 mm	IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-6IN	Female	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	6 in	152.4 mm	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-4.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	4.5 in	114.3 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-5.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz			IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female	5.5 in	139.7 mm
Lighthorse Technologies, Inc CB0.81-2IPX-8.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz			IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-10IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz	10 in	254 mm	IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-8.5IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz			IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-6.5IN-6O	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz			IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	90 °C	-40 °C	Female	6.5 in	165.1 mm
Lighthorse Technologies, Inc CB0.81-2IPX-11.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	11.5 "	292.1 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-3IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	3 in	76.2 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
