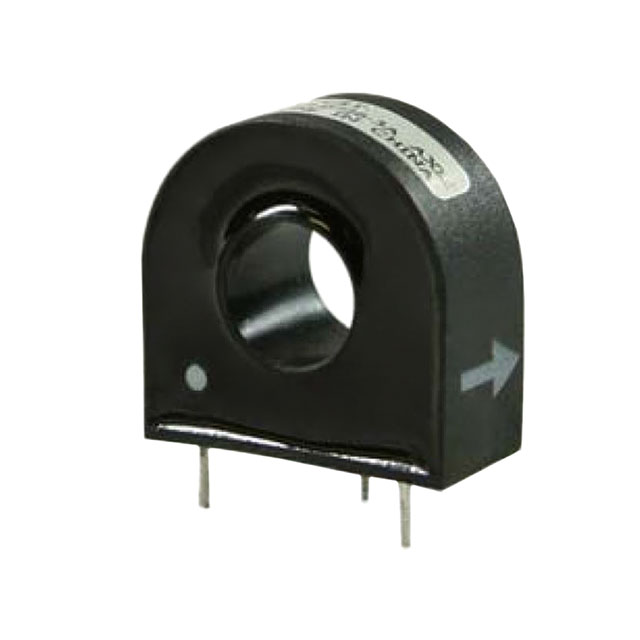

CST-1010-B
ActiveTriad Magnetics
CURR SENSE XFMR 10A T/H
CST-1010-B
ActiveTriad Magnetics
CURR SENSE XFMR 10A T/H
Description
General part information
CST-1010-B
10 A Current Sense Transformer 50/60Hz 40Ohm Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CST-1010-B |
|---|---|
| Current Rating | 10 A |
| Current Ratio | 1000 ratio |
| DC Resistance (DCR) | 40 Ohm |
| Frequency Range | 60Hz, 50Hz |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 0.976 in |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.925 in |
| Size / Dimension Width | 0.472 in |
| Termination Style | PC Pin |
| Type | Non-Invasive (Solid Core) |
| Weight | 0.044 lb |
