Description
General part information
SMA-LP-085

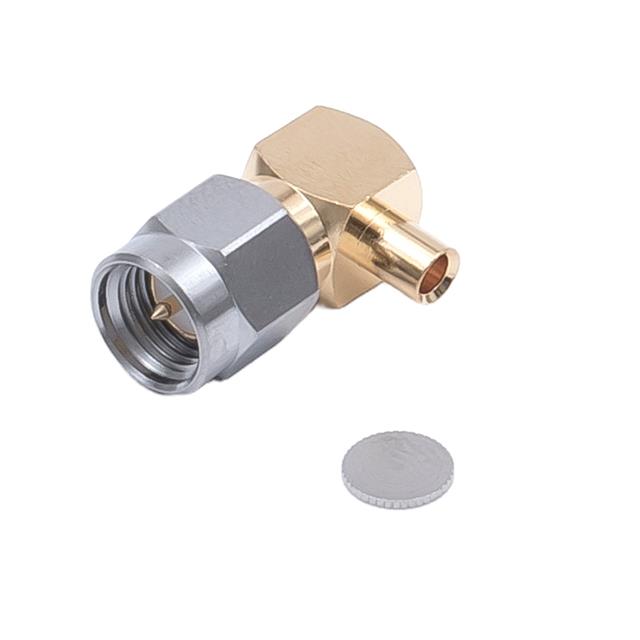

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-LP-085 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-405 |
| Cable Group Diameter (Semi Rigid) | 0.085 in |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
