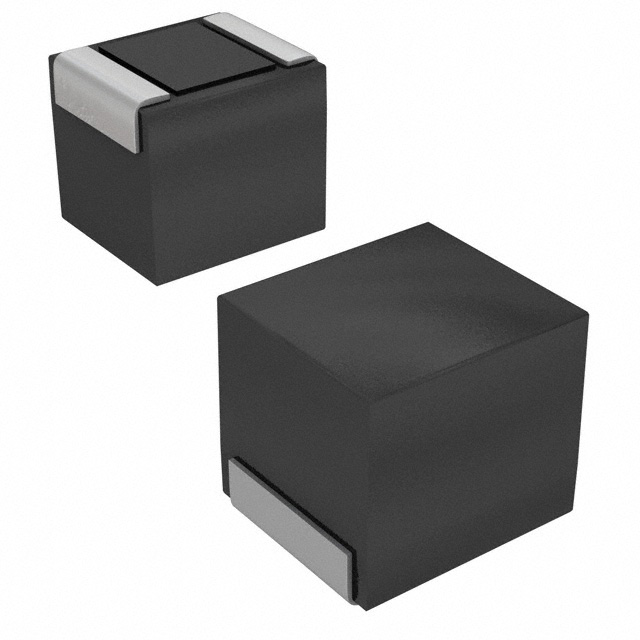

B82442T1472K050
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 1.95A 73MOHM SMD
B82442T1472K050
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 1.95A 73MOHM SMD
Description
General part information
B82442T1472K050
4.7 µH Unshielded Drum Core, Wirewound Inductor 1.95 A 73mOhm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B82442T1472K050 |
|---|---|
| Current - Saturation (Isat) | 3.45 A |
| Current Rating | 1.95 A |
| DC Resistance (DCR) (Max) | 73 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) | 0.209 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Package Name | 2220 (5650 Metric) |
| Q | 15 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
