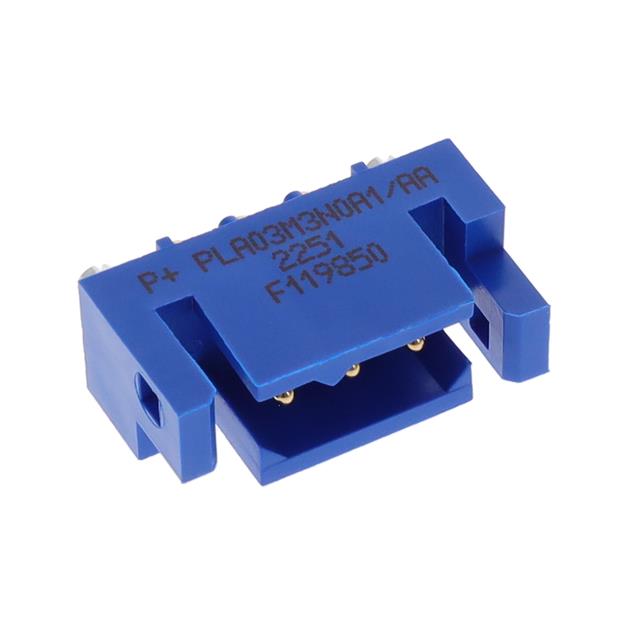

PLA03M3N0A1/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, PLUG, 3POS, THT ROHS COMPLIANT: YES
PLA03M3N0A1/AA
ActiveMcGill Microwave Systems
RECT PWR CONN, PLUG, 3POS, THT ROHS COMPLIANT: YES
Description
General part information
PLA03M3N0A1/AA
3 Connector Header, Male Pins Through Hole Blue Power
Technical Specifications
Parameters and characteristics for this part
| Specification | PLA03M3N0A1/AA |
|---|---|
| Color | Blue |
| Connector Style | Power |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Current Rating | 32 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.197 in |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
