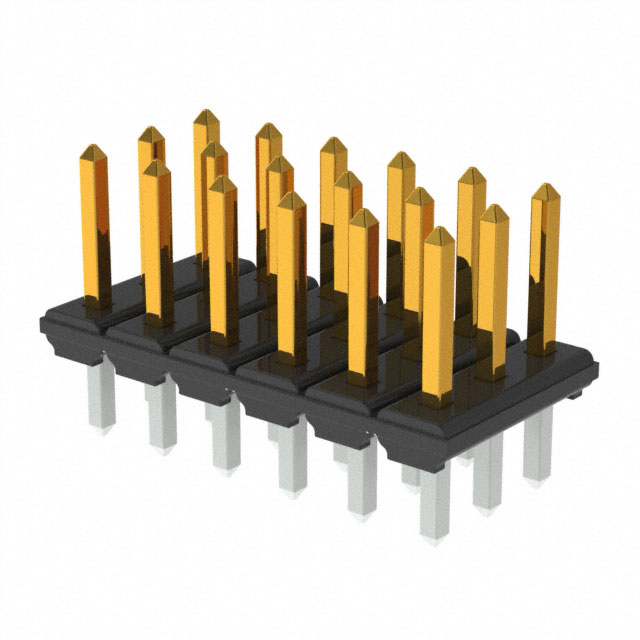

XJ8D-1811

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 18POS 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 18POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XJ8D-1811	XJ8D Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Length - Mating [x]	4.3 mm	4.3 mm
Contact Length - Mating [x]	0.169 in	0.169 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 mm
Insulation Height	0.059 "	0.059 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	18	18
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	8.6 mm	8.6 mm
Overall Contact Length	0.339 in	0.339 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

CONN HEADER VERT 18POS 2.54MM

Part	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Positions Loaded	Shrouding	Voltage Rating	Number of Rows	Contact Length - Post [x]	Contact Length - Post	Connector Type	Contact Material	Contact Shape	Contact Type	Mounting Type	Style	Material Flammability Rating	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insulation Material	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Termination
Omron Electronics Inc-EMC Div XJ8D-1811	1.5 mm	0.059 "	2.54 mm	0.1 in	Black	All	Unshrouded	300 VDC	3	0.11 in	2.79 mm	Header	Brass, Nickel	Square	Male Pin	Through Hole	Board to Board, Cable	UL94 V-0	Push-Pull	18	0.15 µm	5.9 µin	0.1 in	2.54 mm	105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS), Glass Filled	2 A	4.3 mm	0.169 in	8.6 mm	0.339 in	Solder
Omron Electronics Inc-EMC Div XJ8D-0311	1.5 mm	0.059 "	2.54 mm	0.1 in	Black	All	Unshrouded	300 VDC	3	0.11 in	2.79 mm	Header	Brass, Nickel	Square	Male Pin	Through Hole	Board to Board, Cable	UL94 V-0	Push-Pull		0.15 µm	5.9 µin			105 ░C	-55 °C	Gold	Polyphenylene Sulfide (PPS), Glass Filled	2 A	4.3 mm	0.169 in	8.6 mm	0.339 in	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.30
