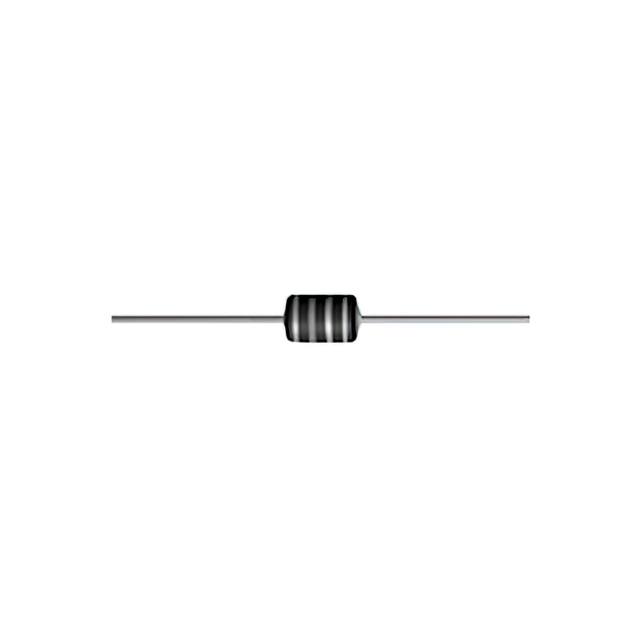

B82144F1472K000
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 1.8A 0.12OHM TH
B82144F1472K000
ActiveEPCOS - TDK Electronics
FIXED IND 4.7UH 1.8A 0.12OHM TH
Description
General part information
B82144F1472K000
4.7 µH Unshielded Wirewound Inductor 1.8 A 120mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144F1472K000 |
|---|---|
| Current Rating | 1.8 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Frequency - Self Resonant | 100 MHz |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Q | 25 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 10 % |
| Type | Wirewound |
