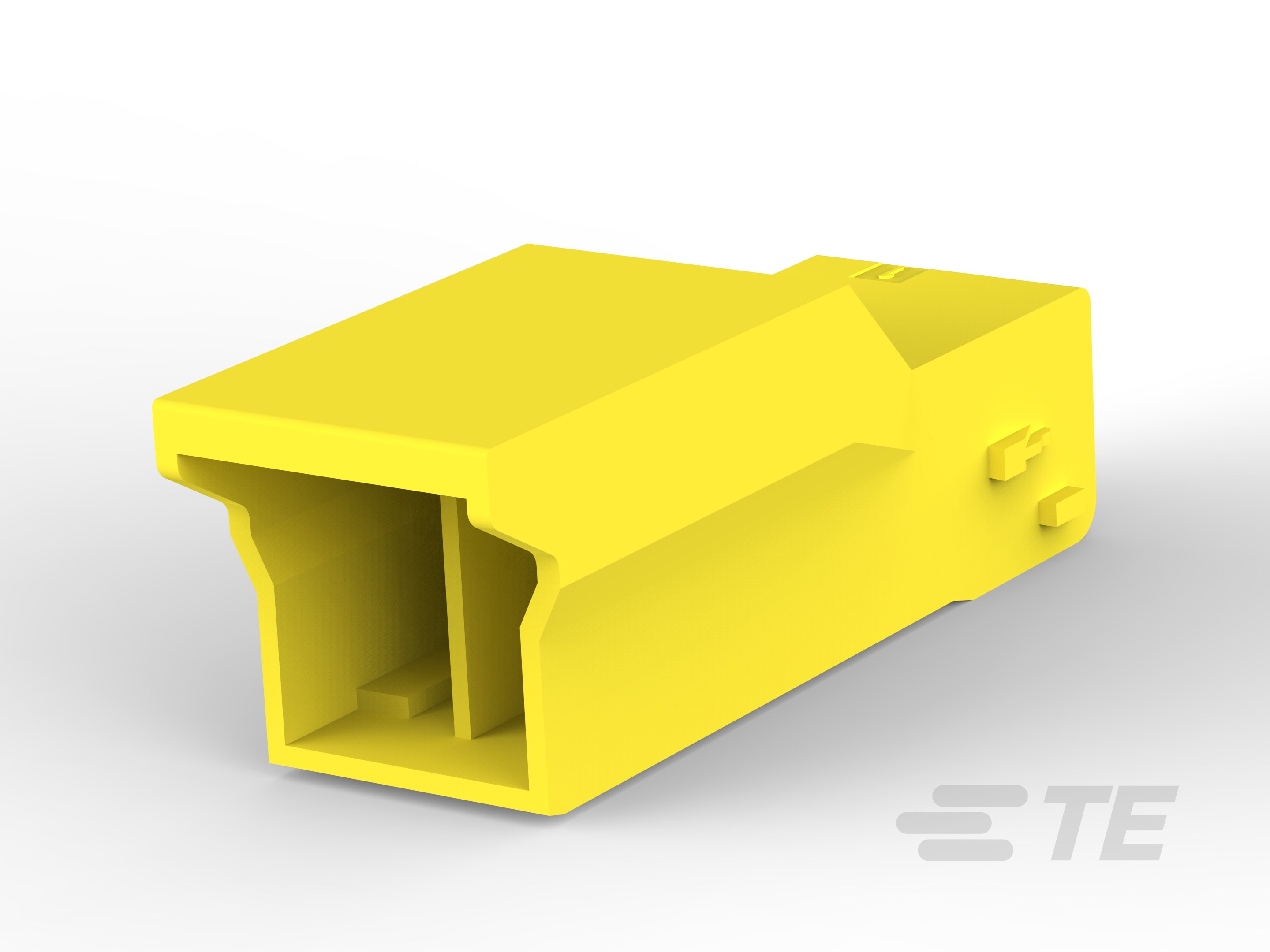

GRACE INERTIA CONNECTOR 3.5 2P-3-1565085-4

3-1565085-4

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS GRACE INERTIA CONNECTOR 3.5 2P

Find alt
GRACE INERTIA CONNECTOR 3.5 2P-3-1565085-4

3-1565085-4

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS GRACE INERTIA CONNECTOR 3.5 2P

Find alt

Description

General part information

GRACE INERTIA 3.5 Series

2 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.5 mm [.138 in] Centerline, 1 Row, 300 VAC, Wire & Cable, GRACE INERTIA 3.5

Technical Specifications

Parameters and characteristics for this part

Specification3-1565085-4
ColorYellow
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeTab
Fastening TypeLocking Ramp
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions2
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.138 in
