Description
General part information

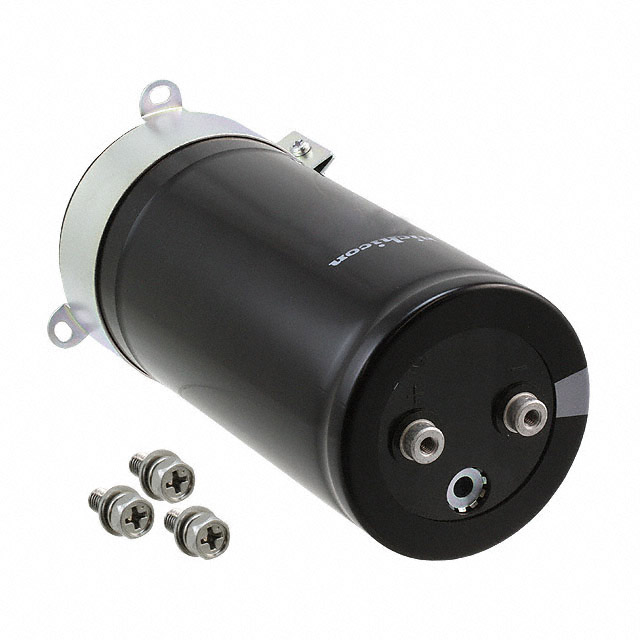

LNT2V822MSEH
8200 µF 350 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNT2V822MSEH |
|---|---|
| Applications | General Purpose |
| Capacitance | 8200 µF |
| Height - Seated (Max) | 6.811 in |
| Lead Spacing | 1.252 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 42.42 A, 30.3 A |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
