1004369PT-AA10L0135
ActiveKYOCERA AVX

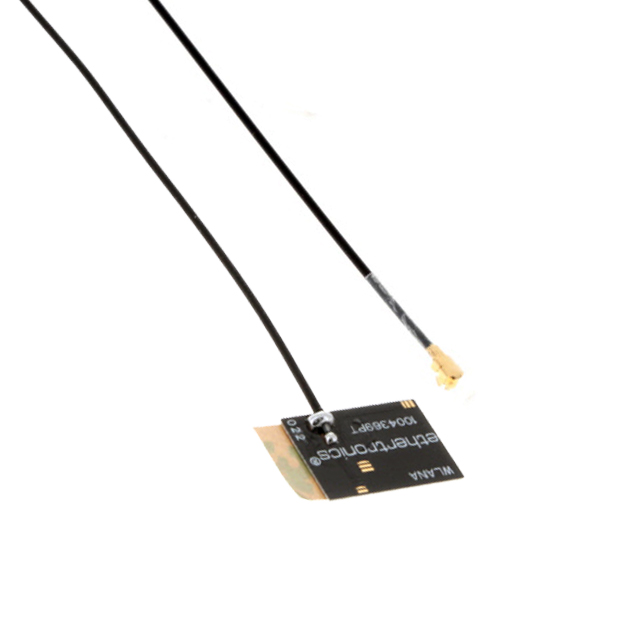

ANTENNA ASSY, WLANA PT 135
1004369PT-AA10L0135
ActiveKYOCERA AVX
ANTENNA ASSY, WLANA PT 135
Description
General part information
1004369PT-AA10L0135
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1004369PT-AA10L0135 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, Zigbee™, WLAN, Bluetooth |
| Features | 135mm, Cable |
| Frequency (Center/Band) | 5.4875 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.825 GHz |
| Frequency Range (Min) | 5.15 GHz |
| Gain | 3.7 dBi |
| Height (Max) | 0.016 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 2 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | U.FL |
| VSWR | 2 |
