Description
General part information

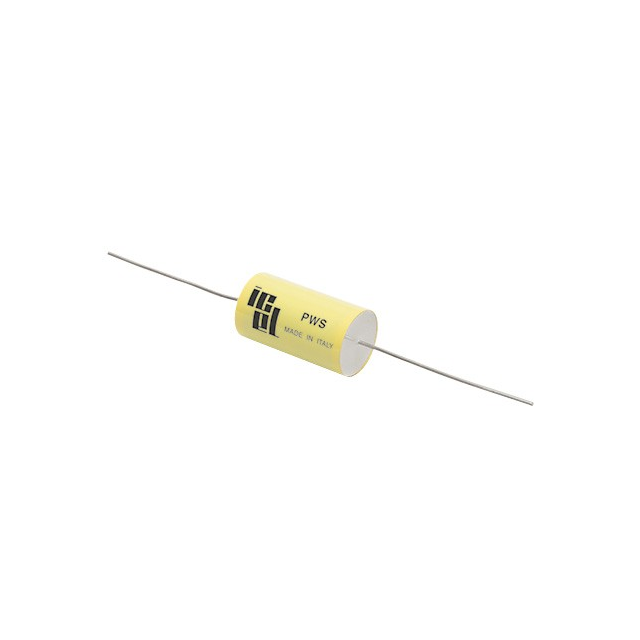

PWS2201220KD
2200 pF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | PWS2201220KD |
|---|---|
| Applications | High Pulse, Snubber, Switching, High Frequency, DV/DT |
| Capacitance | 2200 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.413 in |
| Size / Dimension Length | 0.748 in |
| Termination | Wire Leads, PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 2 kVDC |
