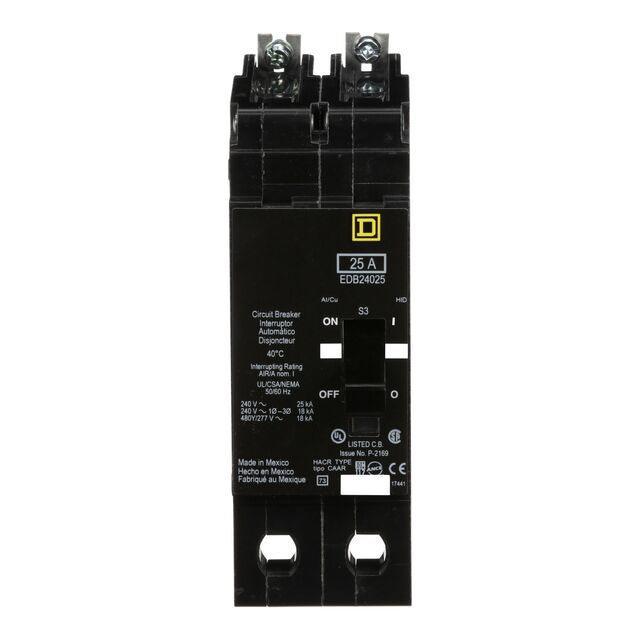

EDB24025
ActiveSCHNEIDER ELECTRIC
MINIATURE CIRCUIT BREAKER 480Y/2
EDB24025
ActiveSCHNEIDER ELECTRIC
MINIATURE CIRCUIT BREAKER 480Y/2
Description
General part information
EDB24025
Circuit Breaker Thermal Magnetic 25A 480 V AC DC Lever Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | EDB24025 |
|---|---|
| Actuator Type | Lever |
| Approval Agency | cULus |
| Breaker Type | Thermal Magnetic |
| Current Rating | 25 A |
| Illumination | None |
| Mounting Type | Chassis Mount |
| Number of Poles | 2 |
| Voltage Rating - AC | 480 VAC |
