Description
General part information

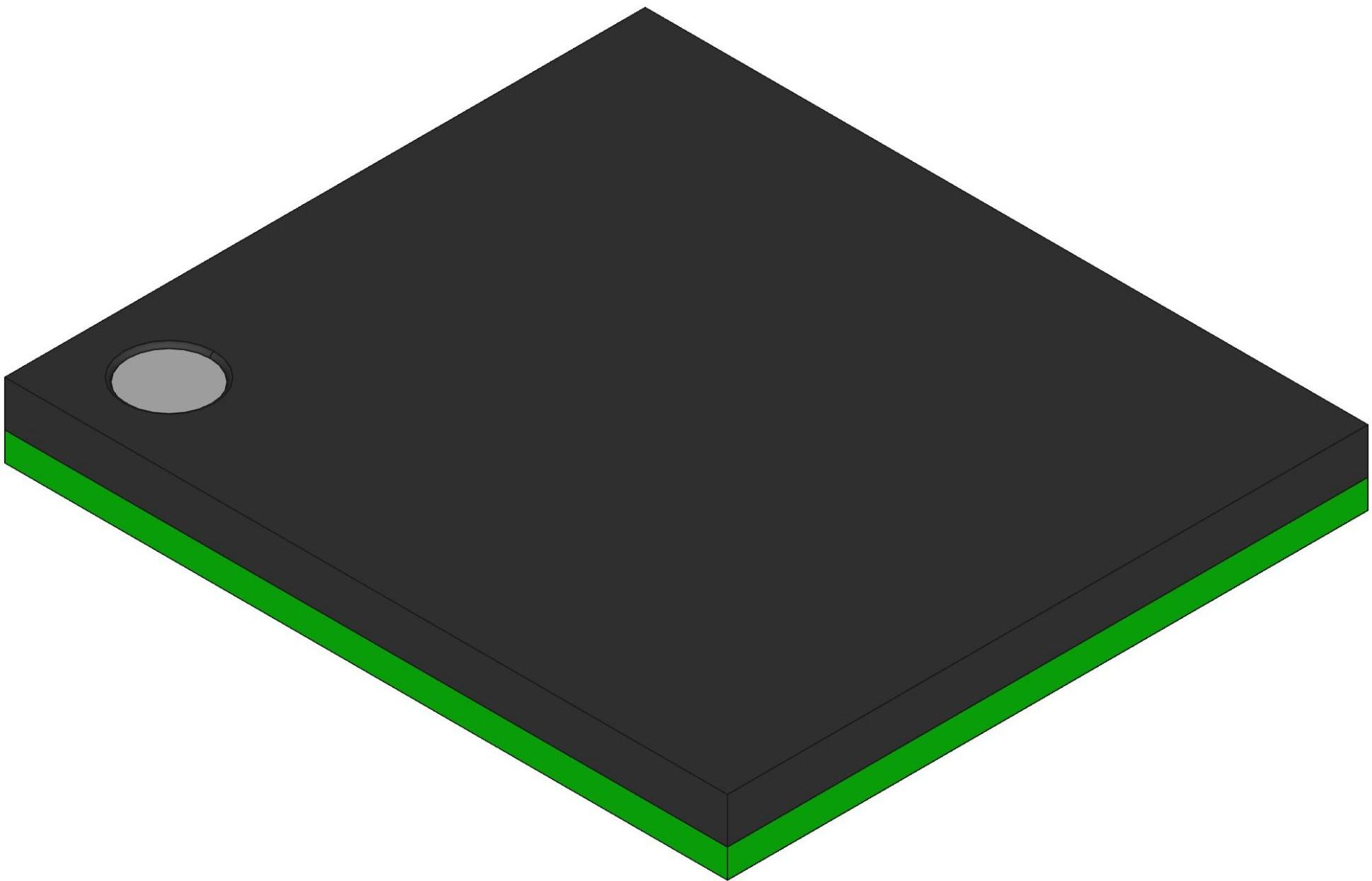

S29GL064S70BHA043
NOR FLASH PARALLEL 3V/3.3V 64M-BIT 8M X 8/4M X 16 70NS 48-PIN FBGA T/R AUTOMOTIVE AEC-Q100
Technical Specifications
Parameters and characteristics for this part
| Specification | S29GL064S70BHA043 |
|---|---|
| Access Time | 70 ns |
| Grade | Automotive |
| Memory Depth (Option 1) | 8 M |
| Memory Depth (Option 2) | 4 M |
| Memory Format | FLASH |
| Memory Interface (Type) | Parallel |
| Memory Organization | 4M x 16, 8M x 8 |
| Memory Size | 64 Mbit |
| Memory Type | Non-Volatile |
| Memory Width (Option 1) | 8 bit |
| Memory Width (Option 2) | 16 bit |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 48-VFBGA |
| Package Length | 8.15 mm |
| Package Name | 48-FBGA |
| Package Width | 6.15 mm |
| Qualification | AEC-Q100 |
| Technology | FLASH - NOR |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
| Write Cycle Time - Page | 60 ns |
| Write Cycle Time - Word | 60 ns |
