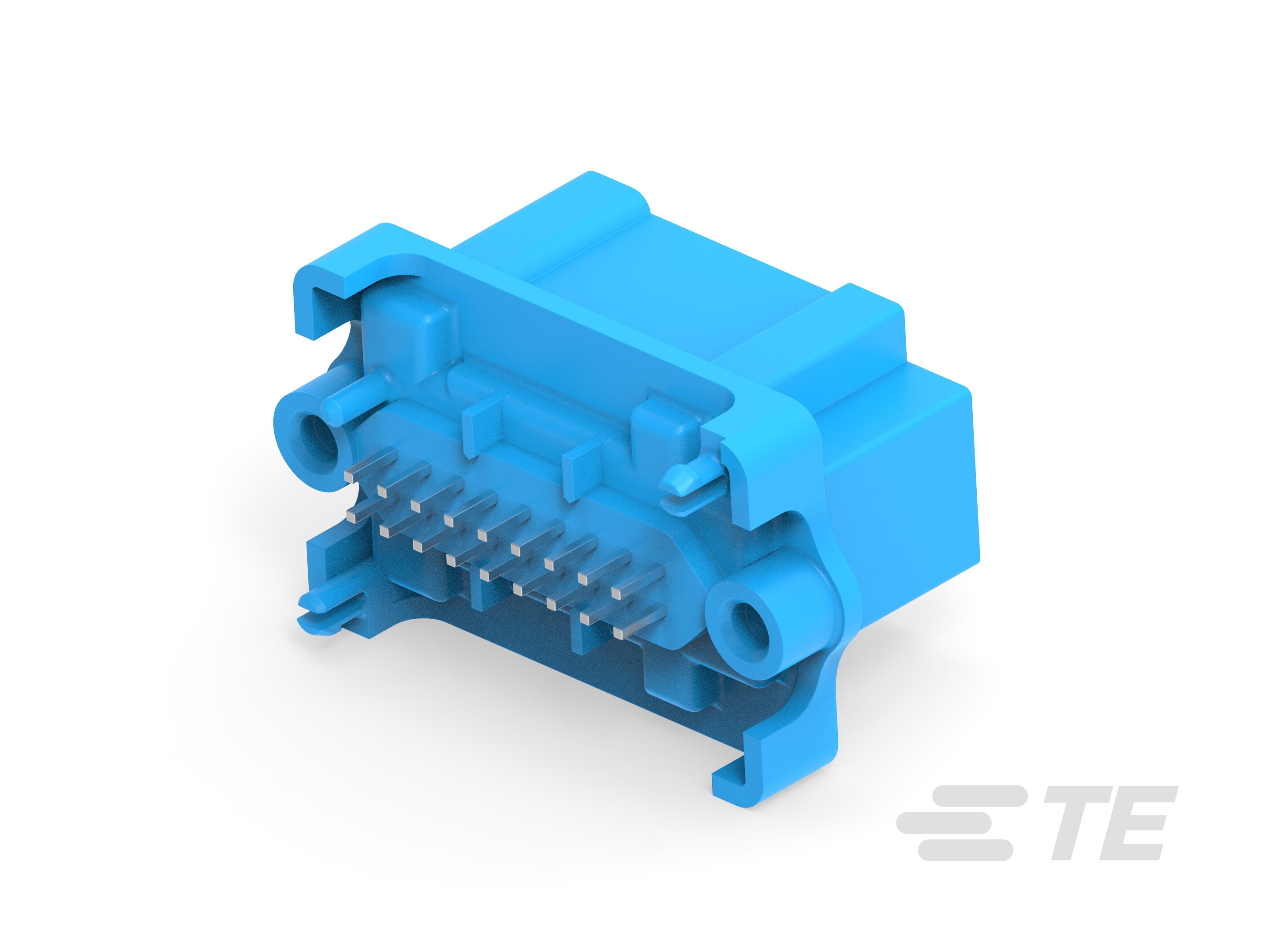

Specification	3-967618-2

Connector Type	Header
Contact Finish - Mating	Silver
Contact Length - Mating	0.264 in
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insulation Color	Blue
Insulation Height	0.799 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.525 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.161 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
