1-5645953-2

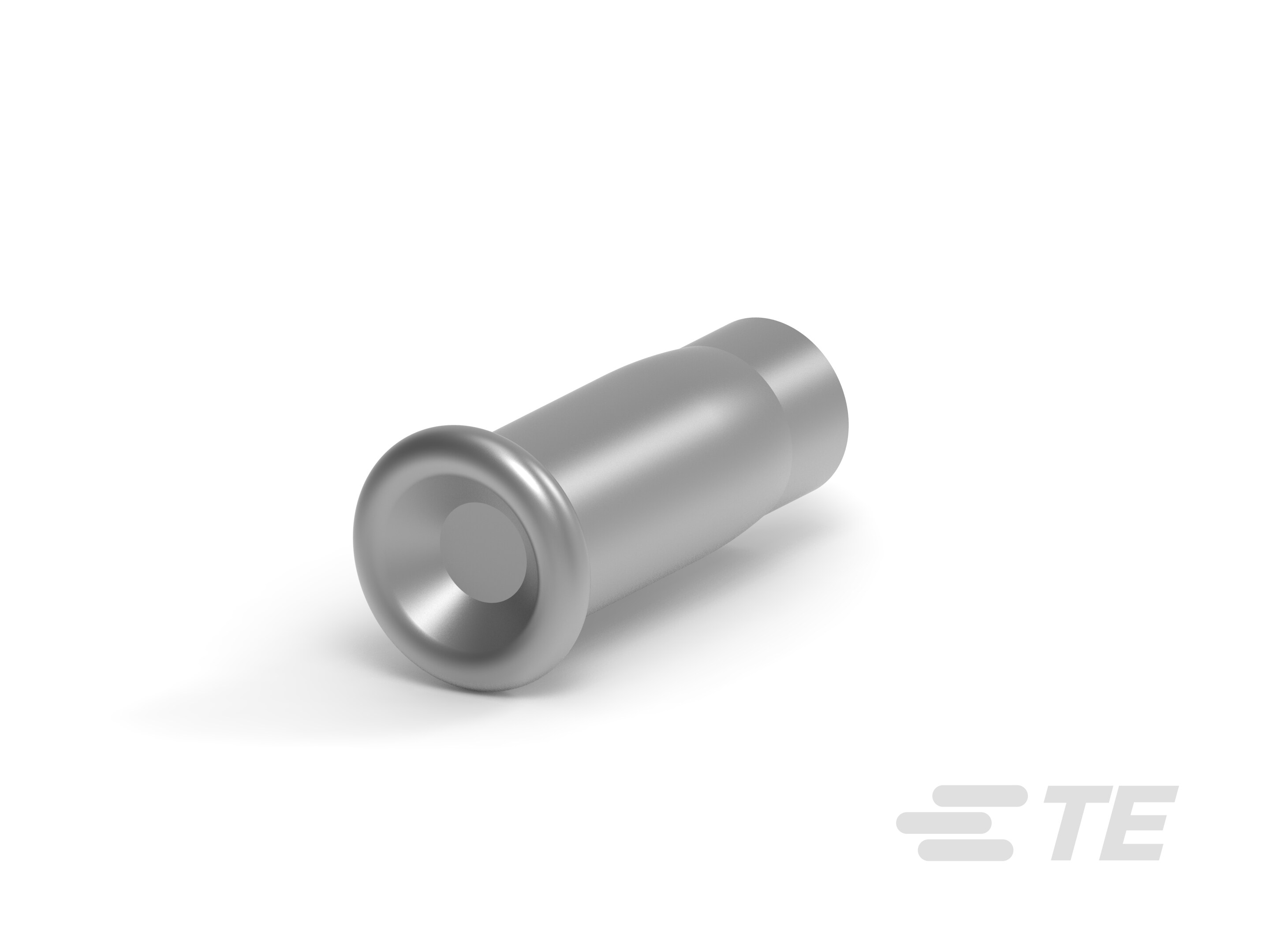

4.01 mm [.158 in] Socket Length, 1.32 mm [.052 in] PCB Hole, Bullet Nose, .162 – .326 mm² Wire, 25 – 22 AWG, Cable-to-Board, Pin Sockets
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-5645953-2 |
|---|---|
| Accepts Pin Diameter (Max) | 0.026 in |
| Accepts Pin Diameter (Min) | 0.02 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.075 in |
| Length - Overall | 0.158 in |
| Mounting Hole Diameter | 0.052 in |
| Socket Depth (Max) | 0.145 in |
| Socket Depth (Min) | 0.09 in |
| Tail Type | No Tail |
| Termination | Solder |
