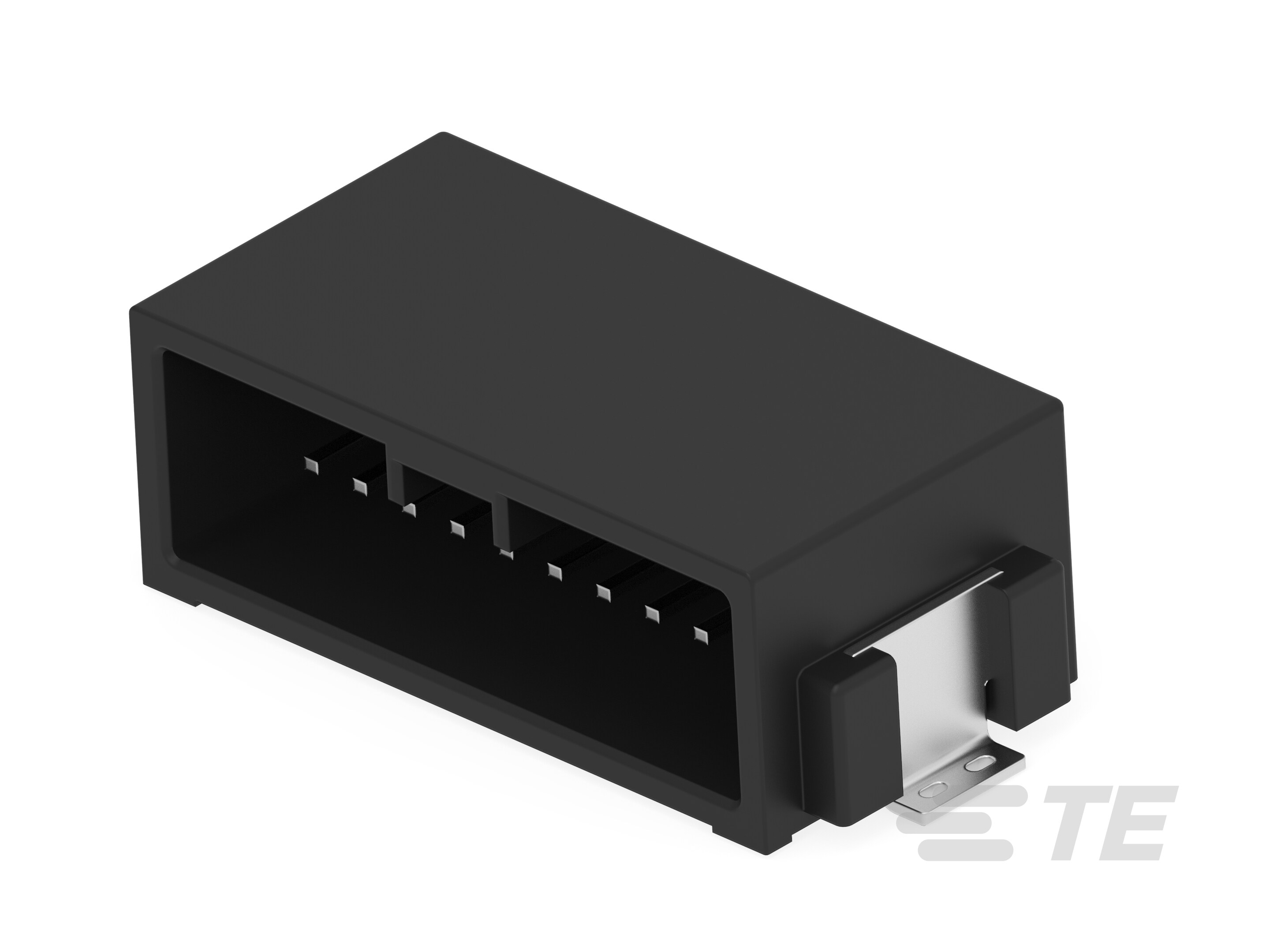

Specification	1-2834465-6

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.34 in
Insulation Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

Mini Dynamic Series Series

Part	Pitch - Mating	Number of Positions Loaded	Termination	Features	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Contact Finish - Mating	Insulation Height	Contact Finish - Post	Contact Type	Contact Length - Post	Insulation Material	Insulation Color	Connector Type	Contact Shape	Contact Material	Mounting Type	Fastening Type	Material Flammability Rating	Shrouding	Style	Number of Positions	Number of Rows	Contact Termination	Pin or Socket	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Pitch	Color
TE Connectivity AMP Connectors 4-2834499-4	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin	0.098 in	Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	44	2
TE Connectivity AMP Connectors 3-2834499-2	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin	0.098 in	Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	36	2
TE Connectivity AMP Connectors 2834464-6																									Crimp	Socket	Stamped	22 AWG	24 AWG	Tin
TE Connectivity AMP Connectors 1-2834461-2					125 °C	-40 °C					Female Socket		Polybutylene Terephthalate (PBT)		Receptacle			Free Hanging (In-Line)	Latch Lock				12	2	Crimp						0.071 in	Black
TE Connectivity AMP Connectors 4-2834465-0	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin		Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	40	2
TE Connectivity AMP Connectors 3-2834499-6	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin	0.098 in	Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	36	2
TE Connectivity AMP Connectors 2-2834465-4	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin		Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	24 pos	2
TE Connectivity AMP Connectors 4-2834499-0	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin	0.098 in	Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	40	2
TE Connectivity AMP Connectors 4-2834465-4	0.071 in	All	Solder	Solder Retention	125 °C	-40 °C	3 A	Tin	0.34 in	Tin	Male Pin		Thermoplastic	Black	Header	Square	Copper Alloy	Right Angle Surface Mount	Push-Pull	UL94 V-0	Shrouded - 4 Wall	Board Cable/Wire	44	2
TE Connectivity AMP Connectors 4-2834461-4					125 °C	-40 °C					Female Socket		Polybutylene Terephthalate (PBT)		Receptacle			Free Hanging (In-Line)	Latch Lock				44	2	Crimp						0.071 in	Black
