FFVE4H0227K--
ActiveKYOCERA AVX

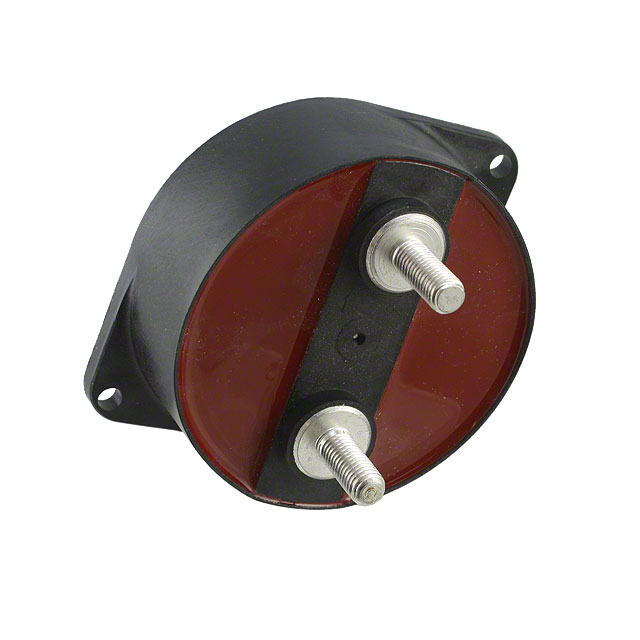

CAP FILM 220UF 10% 300VDC RADIAL
FFVE4H0227K--
ActiveKYOCERA AVX
CAP FILM 220UF 10% 300VDC RADIAL
Description
General part information
FFVE4H0227K--
220 µF Film Capacitor 300V Polyester, Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFVE4H0227K-- |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 220 µF |
| Dielectric Material | Polyester, Metallized |
| Lead Spacing | 1.772 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.327 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 300 V |
