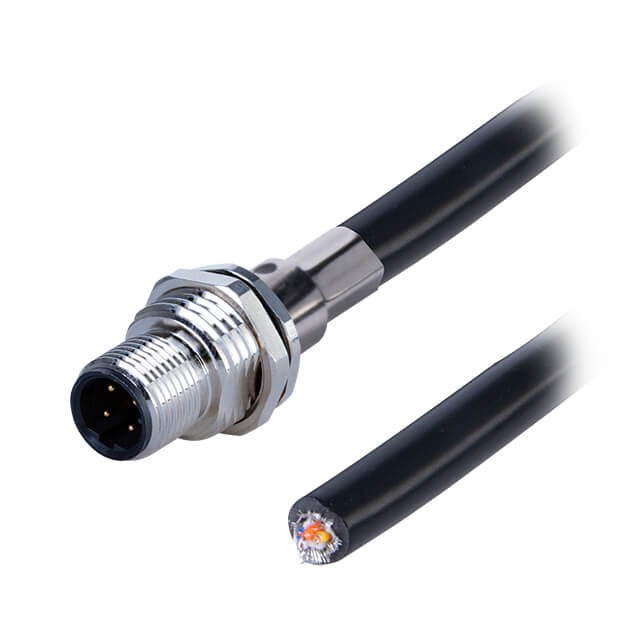

CDM1246-04D-MW-F16-500-67
ActiveSame Sky (Formerly CUI Devices)
SENSOR CABLES / ACTUATOR CABLES SOLDER TYPE,FRONT FASTEN M16*1.5,D-CODE 4PIN ,SCREW COPPER ALLOY,PVC 5.0M
CDM1246-04D-MW-F16-500-67
ActiveSame Sky (Formerly CUI Devices)
SENSOR CABLES / ACTUATOR CABLES SOLDER TYPE,FRONT FASTEN M16*1.5,D-CODE 4PIN ,SCREW COPPER ALLOY,PVC 5.0M
Description
General part information
CDM1246-04D-MW-F16-500-67
Circular Cable Assembly Shielded 16.40' (5.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CDM1246-04D-MW-F16-500-67 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | D |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 16.4 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
