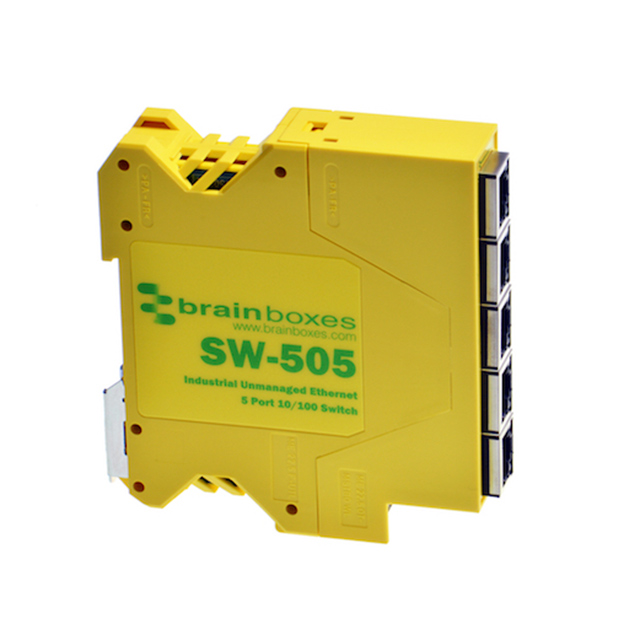

SW-505
ActiveBRAINBOXES
SWITCH, 5 PORTS, INDUSTRIAL, FAST ETHERNET, DIN RAIL, RJ45 X 5, 10MBPS, 100MBPS
SW-505
ActiveBRAINBOXES
SWITCH, 5 PORTS, INDUSTRIAL, FAST ETHERNET, DIN RAIL, RJ45 X 5, 10MBPS, 100MBPS
Description
General part information
SW-505
Industrial 5 port fast Ethernet network switch that is ideal for factory, vehicle and marine applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-505 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 5 |
| Copper Type | 10/100 |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 30 V |
| Voltage - Input (Minimum) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
