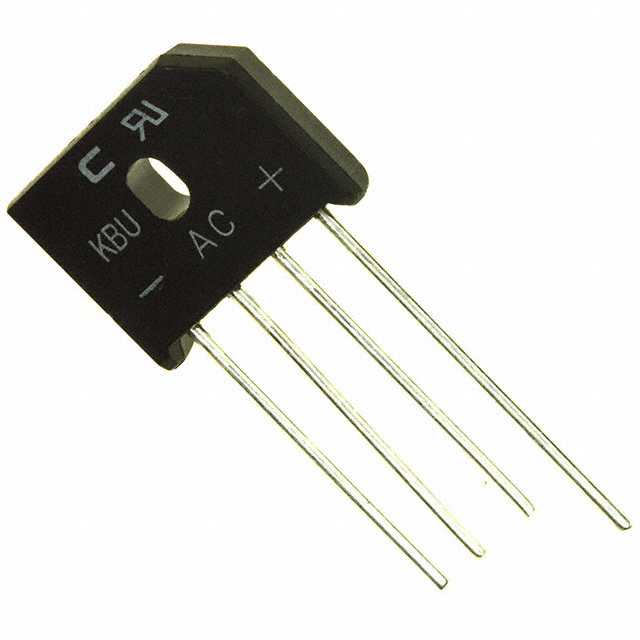

KBU3504-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 35A KBU

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 35A KBU

Technical Specifications

Parameters and characteristics for this part

Specification	KBU3504-G

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	KBU, 4-SIP
Supplier Device Package	KBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1PHASE 400V 35A KBU

Part	Voltage - Peak Reverse (Max) [Max]	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Diode Type	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
Comchip Technology KBU3504-G	400 V	4-SIP, KBU	Through Hole	10 µA	1.1 V	35 A	Single Phase	Standard	-55 °C	150 °C	KBU

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole KBU
