XLP736067.108864X
ActiveRenesas Electronics Corporation

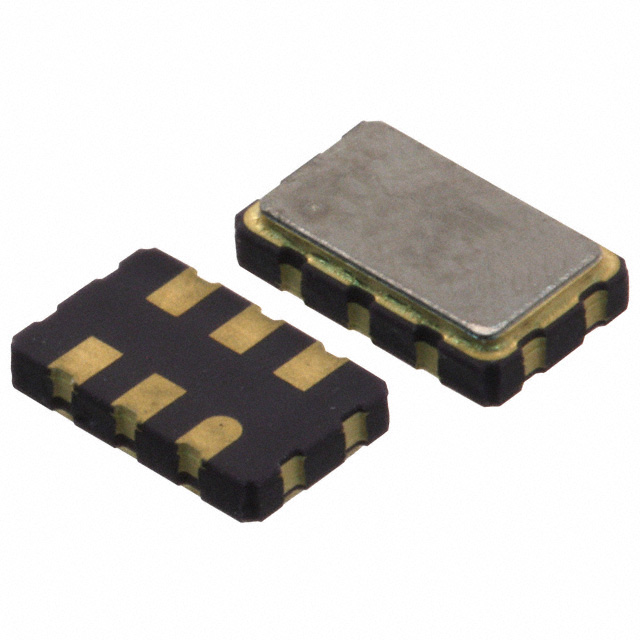

XTAL OSC XO 67.108864MHZ LVPECL
Deep-Dive with AI
Search across all available documentation for this part.
XLP736067.108864X
ActiveRenesas Electronics Corporation
XTAL OSC XO 67.108864MHZ LVPECL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XLP736067.108864X | XLP736 Series |
|---|---|---|
| - | - | |
| Base Resonator | Crystal | Crystal |
| Current - Supply (Max) [Max] | 120 mA | 120 mA |
| Frequency | 67.108864 MHz | 50 - 998.8123 MHz |
| Frequency Stability | 25 ppm | 25 ppm |
| Function | Enable/Disable | Enable/Disable |
| Height - Seated (Max) | - | 1.45 mm |
| Height - Seated (Max) [Max] | 1.4 mm | 0.057 - 1.4 in |
| Height - Seated (Max) [Max] | 0.055 in | 0.055 in |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -20 C | -40 - -20 °C |
| Output | LVPECL | LVPECL |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension [x] | 0.295 in | 0.276 - 0.295 " |
| Size / Dimension [x] | 7.5 mm | 7 - 7.5 mm |
| Size / Dimension [y] | 0.205 " | 0.197 - 0.205 " |
| Size / Dimension [y] | 5.2 mm | 5 - 5.2 mm |
| Type | XO (Standard) | XO (Standard) |
| Voltage - Supply | 3.3 V | 3.3 V |
XLP736 Series
XTAL OSC XO 174.7030MHZ LVPECL
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Stability | Operating Temperature [Max] | Operating Temperature [Min] | Base Resonator | Voltage - Supply | Function | Frequency | Output | Current - Supply (Max) [Max] | Type | Package / Case | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation XLP736174.703000I | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 174.703 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736698.812300X | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 70 °C | -20 C | Crystal | 3.3 V | Enable/Disable | 698.8123 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736250.000000I | 7.5 mm | 5.2 mm | 0.295 in | 0.205 " | Surface Mount | 1.4 mm | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 250 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | 0.055 in | |
Renesas Electronics Corporation XLP736050.000000I | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 50 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736100.300000I | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 100.3 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736148.000000I | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 148 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736300.000000I | 7.5 mm | 5.2 mm | 0.295 in | 0.205 " | Surface Mount | 1.4 mm | 25 ppm | 85 °C | -40 °C | Crystal | 3.3 V | Enable/Disable | 300 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | 0.055 in | |
Renesas Electronics Corporation XLP736308.571400X | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | 1.45 mm | 0.057 in | 25 ppm | 70 °C | -20 C | Crystal | 3.3 V | Enable/Disable | 308.5714 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | |
Renesas Electronics Corporation XLP736067.108864X | 7.5 mm | 5.2 mm | 0.295 in | 0.205 " | Surface Mount | 1.4 mm | 25 ppm | 70 °C | -20 C | Crystal | 3.3 V | Enable/Disable | 67.108864 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | 0.055 in | |
Renesas Electronics Corporation XLP736120.000000X | 7.5 mm | 5.2 mm | 0.295 in | 0.205 " | Surface Mount | 1.4 mm | 25 ppm | 70 °C | -20 C | Crystal | 3.3 V | Enable/Disable | 120 MHz | LVPECL | 120 mA | XO (Standard) | 6-SMD, No Lead | 0.055 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1000 | $ 1.46 | |
Description
General part information
XLP736 Series
67.108864 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
