Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-1043-C3-R0 |
|---|---|
| Attachment Method | Push Pin |
| Fin Height | 0.984 in |
| Fin Height | 25 mm |
| Length | 1.61 in |
| Length | 40.89 mm |
| Material | Aluminum |
| Material Finish | Green Anodized |
| Package Cooled | BGA |
| Shape | Rectangular, Angled Fins |
| Thermal Resistance @ Forced Air Flow | 1.6 °C/W |
| Type | Top Mount |
| Width | 45 mm |
| Width [x] | 1.772 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

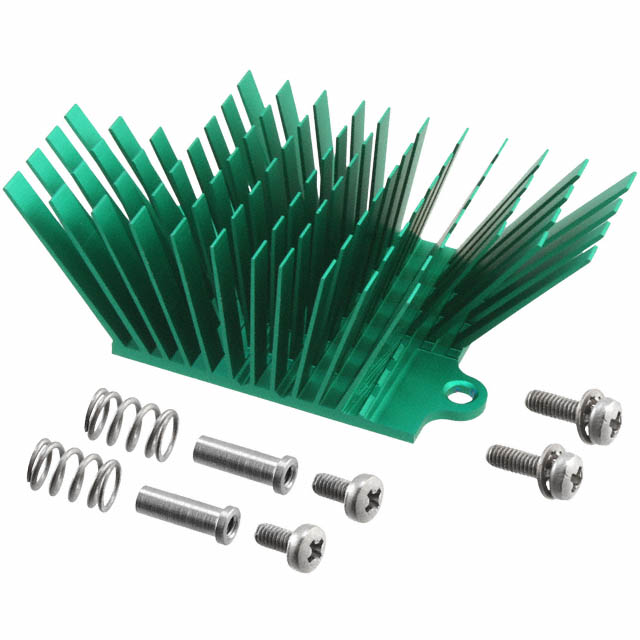

ATS-1043-C3-R0
Heat Sink BGA Aluminum Top Mount
