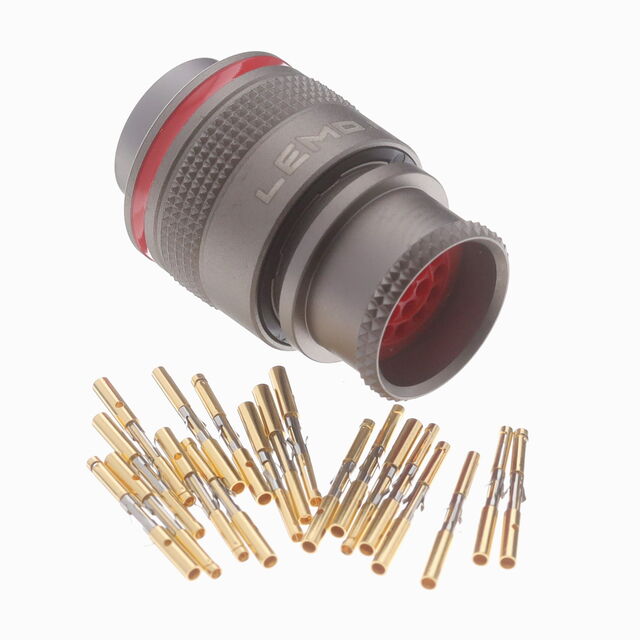

FMS.2M.319.XLMT

Active

LEMO

CONN PLUG FMALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 19POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FMS.2M.319.XLMT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.512 in
Cable Opening [custom]	13 mm
Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	319
Shielding	Shielded
Termination	Crimp

CONN PLUG FMALE 19POS GOLD CRIMP

Part	Shell Material	Mounting Type	Features	Termination	Shell Size - Insert	Ingress Protection	Number of Positions	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Insert Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Primary Material	Current Rating (Amps)	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Color	Shielding
LEMO FMS.2M.319.XLMT	Aluminum Alloy	Free Hanging (In-Line)	Coupling Nut	Crimp	319	IP68 - Dust Tight, Waterproof	19	Gold	0.512 in	13 mm	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	-55 °C	200 °C	Aerospace, Automotive, Aviation, Military	Metal	4 A	S	59 Áin	1.5 Ám	Nickel	Gray	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Plug, Female Sockets Crimp
