FMCA1812-48
ActiveFairview Microwave
CBL ASSY QMAPLUG-SMAJACK 48
FMCA1812-48
ActiveFairview Microwave
CBL ASSY QMAPLUG-SMAJACK 48
Description
General part information
FMCA1812-48

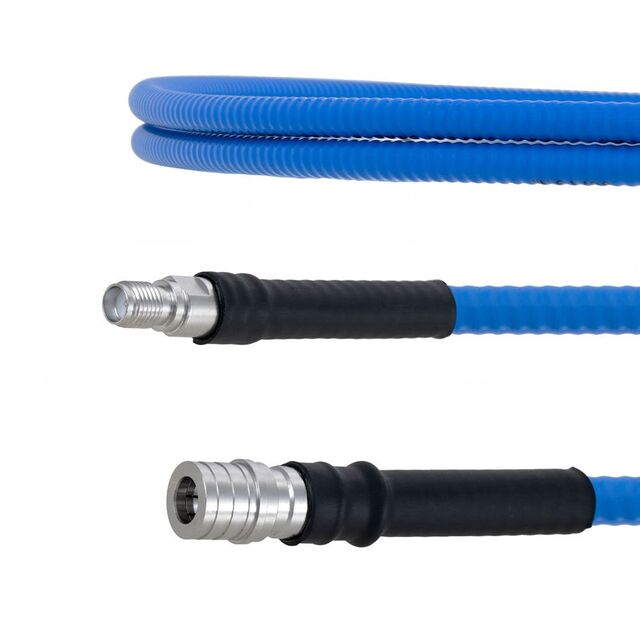

Cable Assembly Coaxial SMA to QMA SPP-250LLPL 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1812-48 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, QMA |
