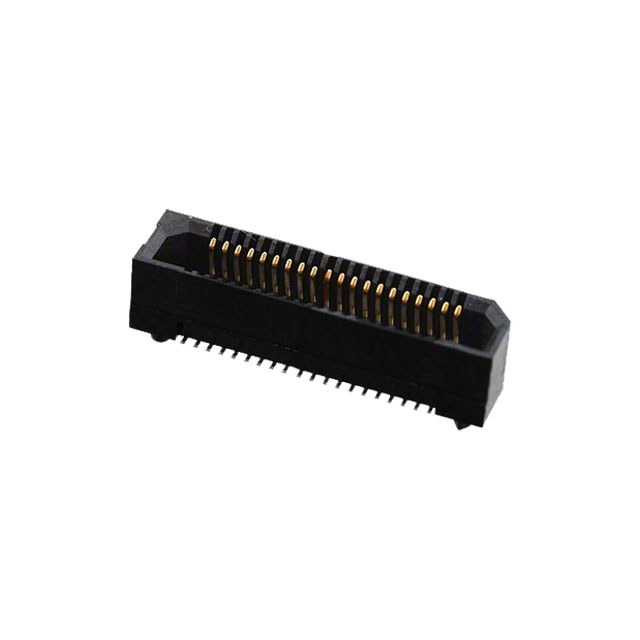

ERF8-020-01-S-D-EM2-EGPS-TR

Active

Samtec Inc.

CONN SOCKET 40POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERF8-020-01-S-D-EM2-EGPS-TR

Active

Samtec Inc.

CONN SOCKET 40POS EDGE MNT GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-020-01-S-D-EM2-EGPS-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Mounting Type	Board Edge, Straddle Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-060 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

...

Part	Number of Rows	Number of Positions	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-050-05.0-L-DV-TR	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-013-09.0-L-DV-TR	2	26	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-070-09.0-L-DV-K-TR	2	140	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide Pick and Place	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-05.0-S-DV	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-S-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-RA-EGP-TR	2	40	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-L-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-060-05.0-S-DV-K-TR	2	120	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide Pick and Place	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-EM2-EGPS-TR	2	40	Board Edge Straddle Mount		Outer Shroud Contacts Socket				30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-07.0-L-DV-TR	2	40	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	Outer Shroud Contacts Socket			Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in	0.285 in	7.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	150	$ 4.76

Description

General part information

ERF8-060 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket
