2069626-5
ActiveTE Connectivity AMP Connectors

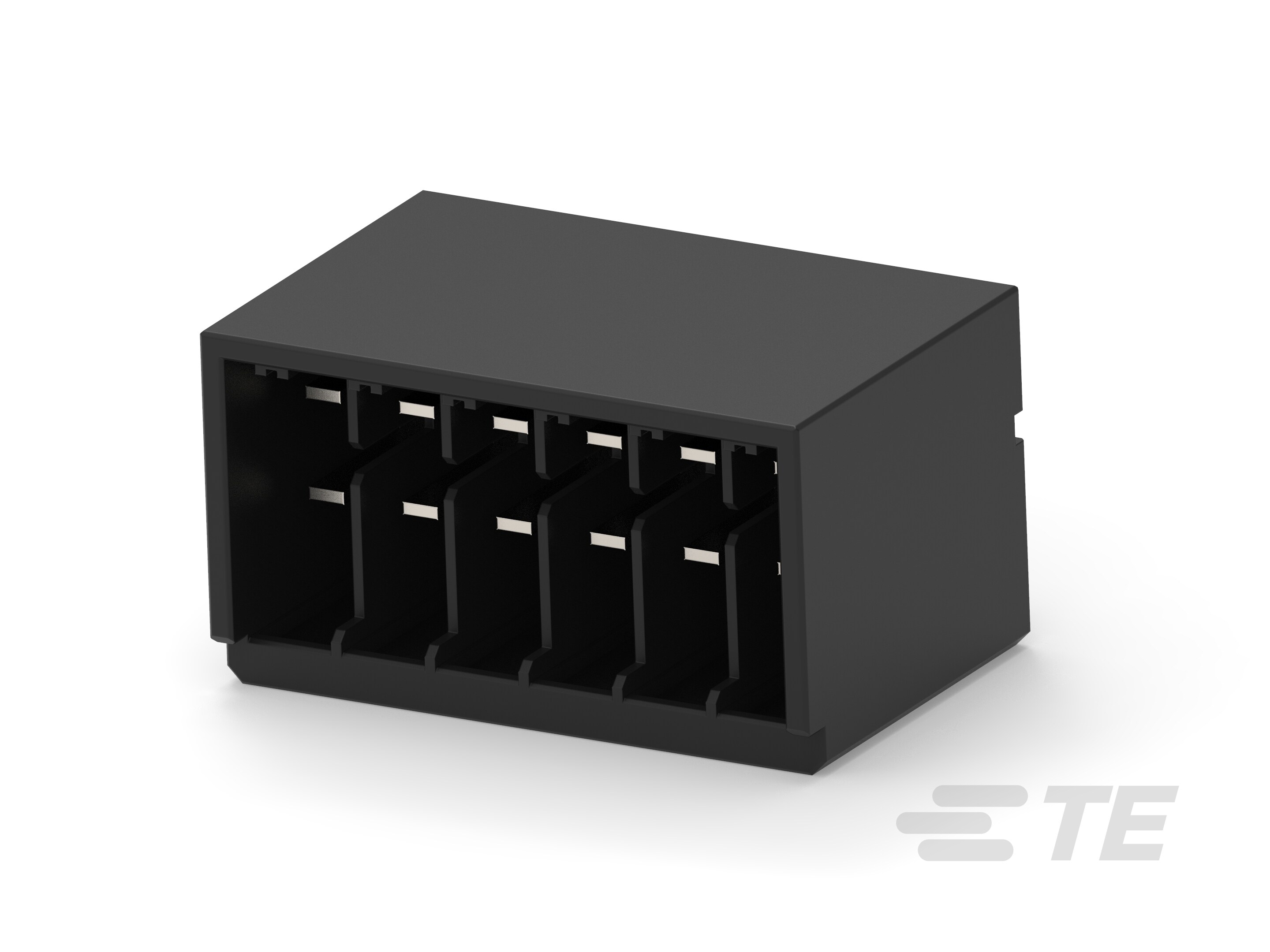

DYNAMIC 3500D HDR ASSY RIB V 12P BLACK
2069626-5
ActiveTE Connectivity AMP Connectors
DYNAMIC 3500D HDR ASSY RIB V 12P BLACK
Description
General part information
2069626-5
PCB Mount Header, Vertical, Wire-to-Board, 12 Position, Fully Shrouded, Through Hole - Solder, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2069626-5 |
|---|---|
| Connector Type | Header |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating | 6 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
