384850-E
ActiveTE Connectivity AMP Connectors
STVRD 128 FI ABCD VVVV 7-03 TL-S * * 247
384850-E
ActiveTE Connectivity AMP Connectors
STVRD 128 FI ABCD VVVV 7-03 TL-S * * 247
Description
General part information
- Series

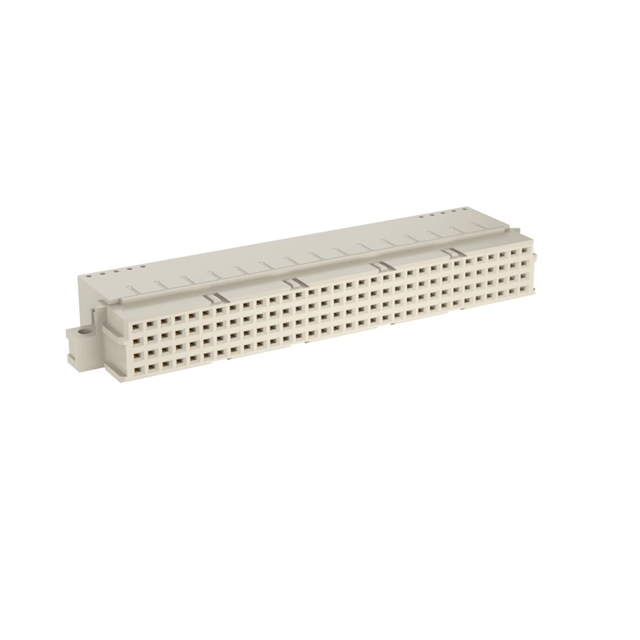

Receptacle, Board-to-Board, 128 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 4 Row, Right Angle, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 384850-E |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 128 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | RD |
| Termination | Solder |
