YA9-13
ActiveTE Connectivity AMP Connectors

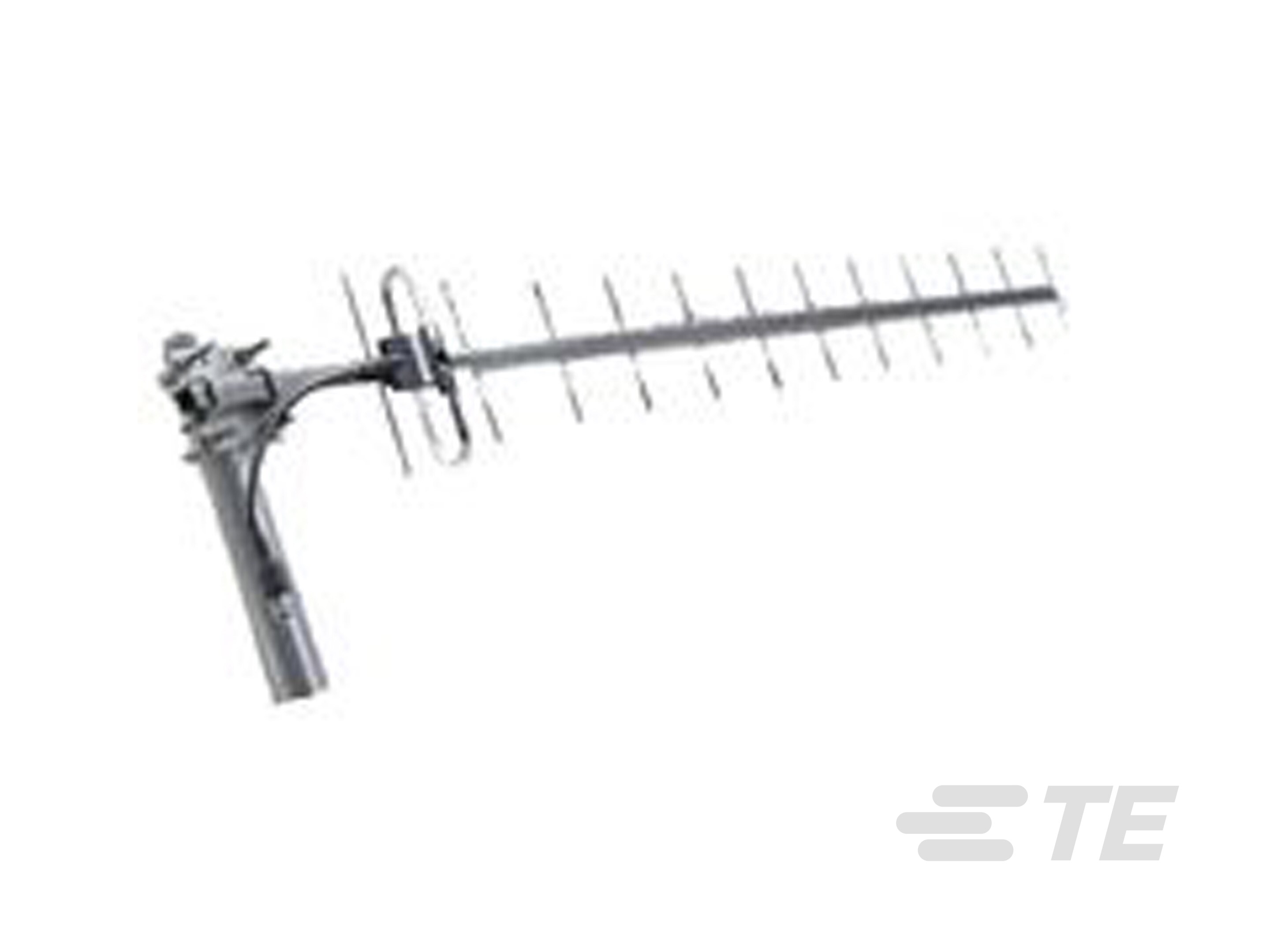

YAGI,STD,18IN,NF 860-960MHZ,13DBI,SS
YA9-13
ActiveTE Connectivity AMP Connectors
YAGI,STD,18IN,NF 860-960MHZ,13DBI,SS
Description
General part information
YA9-13
Yagi Antenna, Single Band, ISM / LoRaWAN, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | YA9-13 |
|---|---|
| Antenna Element Count | 15 elements |
| Antenna Type | Yagi |
| Applications | WiMax™ |
| Features | Cable, 457mm |
| Frequency (Center/Band) | 900 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 860 MHz |
| Gain | 13 dBi |
| Height (Max) | 57 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
