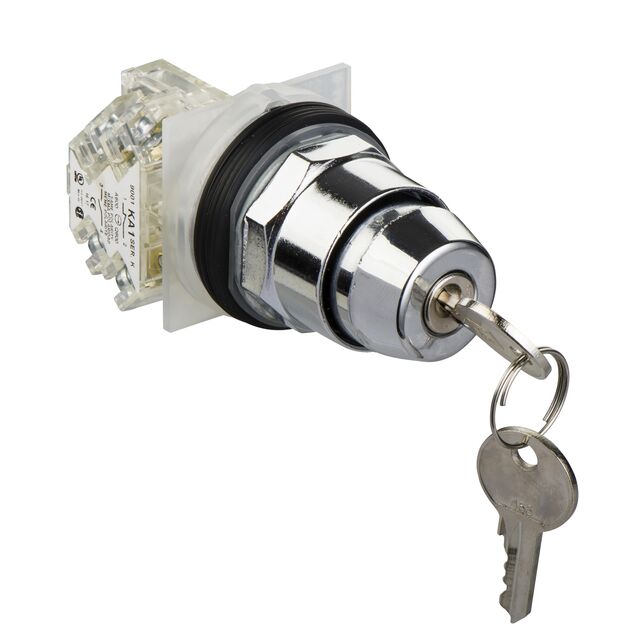

9001KS11K3H13
ActiveSCHNEIDER ELECTRIC
KEYLOCK SWITCH, MAINTAINED, HARMONY SERIES, 2 POSITION, SCREW CLAMP
9001KS11K3H13
ActiveSCHNEIDER ELECTRIC
KEYLOCK SWITCH, MAINTAINED, HARMONY SERIES, 2 POSITION, SCREW CLAMP
Description
General part information
9001KS11K3H13
9001KS11K3H13 is a harmony 9001K, selector switch. It is certified by UL listed file E42259 CCN NKCR[RETURN]CE[RETURN]CSA LR24590 class 3211 03.
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KS11K3H13 |
|---|---|
| Approval Agency | CE, UL, CSA |
| Circuit | SPDT |
| Features | Round, Bezel, Black Knob |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Type | Standard |
