B82464D6333M000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 2.15A 0.173OHM SM
B82464D6333M000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 2.15A 0.173OHM SM
Description
General part information
B82464D6333M000

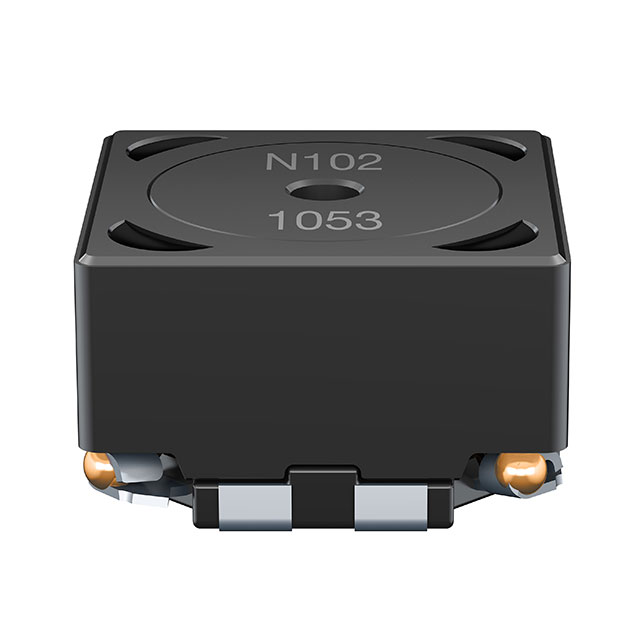

33 µH Shielded Drum Core, Wirewound Inductor 2.15 A 173mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82464D6333M000 |
|---|---|
| Current - Saturation (Isat) | 3.3 A |
| Current Rating | 2.15 A |
| DC Resistance (DCR) (Max) | 173 mOhm |
| Height - Seated (Max) | 0.248 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.409 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
