LMXS07E7M470FTAS
ObsoleteKYOCERA AVX
FIXED IND 47UH 750MA 150MOHM SMD
LMXS07E7M470FTAS
ObsoleteKYOCERA AVX
FIXED IND 47UH 750MA 150MOHM SMD
Description
General part information
LMXS07E7M470FTAS

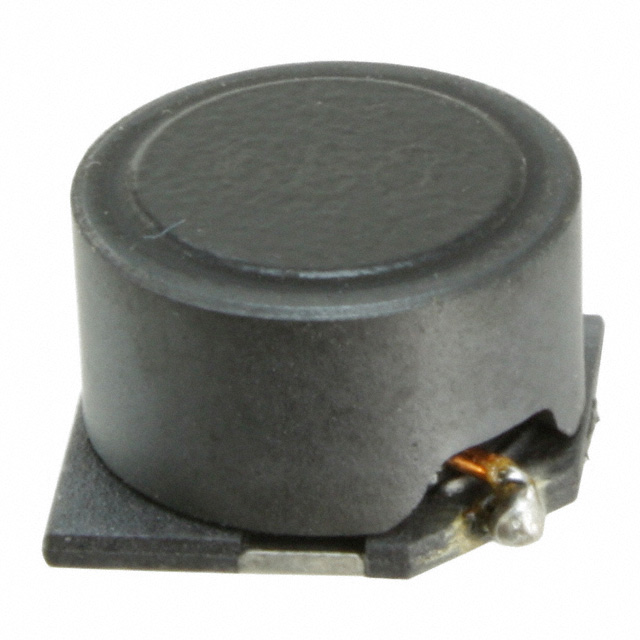

47 µH Shielded Drum Core, Wirewound Inductor 750 mA 150mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMXS07E7M470FTAS |
|---|---|
| Current Rating | 0.75 A |
| DC Resistance (DCR) (Max) | 150 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
