8-917570-7

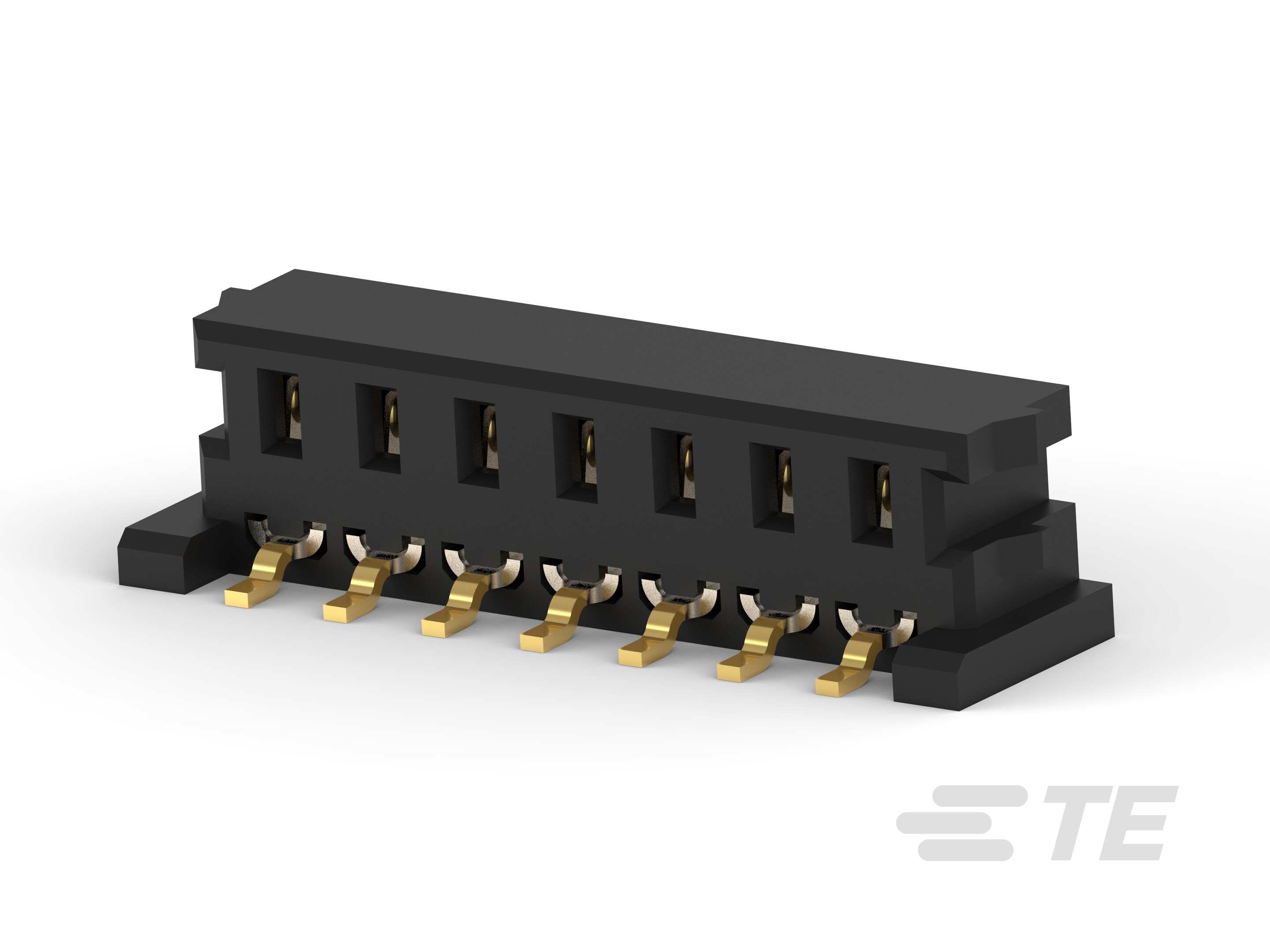

PCB Mount Header, Right Angle, Wire-to-Board, 7 Position, 1.5 mm [.059 in] Centerline, Gold (Au), Surface Mount, Signal, Black, Pocket Tape
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-917570-7 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 8 µin |
| Contact Type | Female Blade Socket |
| Current Rating | 1 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 0.128 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.059 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
