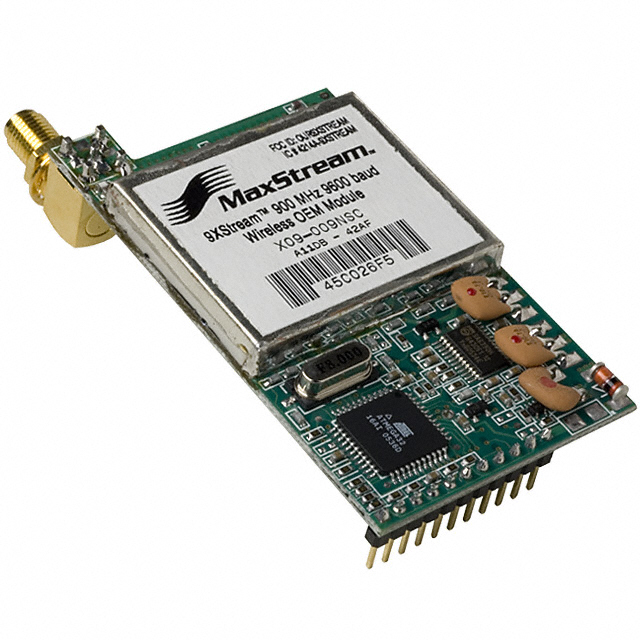

X09-009NSC
ObsoleteDigi International
RF TXRX MOD ISM<1GHZRPSMA SMD
X09-009NSC
ObsoleteDigi International
RF TXRX MOD ISM<1GHZRPSMA SMD
Description
General part information
X09-009NSC
General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, RP-SMA Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X09-009NSC |
|---|---|
| Antenna Type | Antenna Not Included, RP-SMA |
| Current - Receiving | 50 mA |
| Current - Transmitting | 140 mA |
| Data Rate | 9.4 kbps |
| Frequency | 900 MHz |
| Modulation | FHSS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -110 dBm |
| Serial Interfaces | UART |
| Voltage - Supply | 5 VDC |
