OVLEW5CB6
ObsoleteTT Electronics/BI

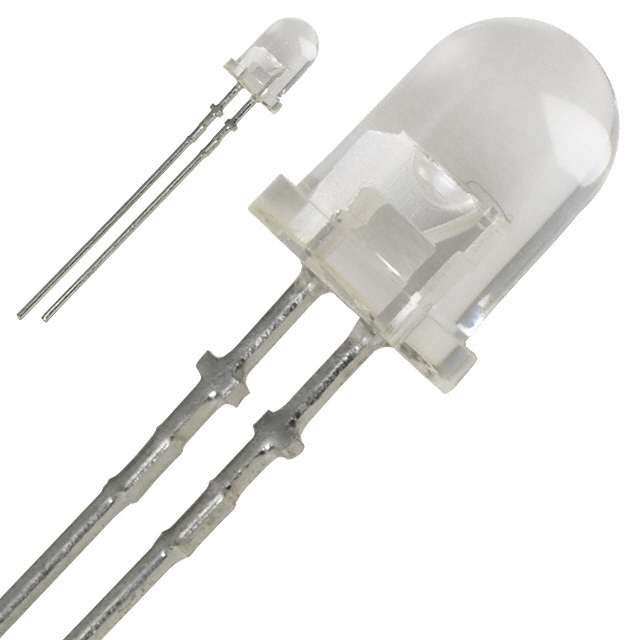

LED WHITE CLEAR 5MM T/H
OVLEW5CB6
ObsoleteTT Electronics/BI
LED WHITE CLEAR 5MM T/H
Description
General part information
OVLEW5CB6
White LED Indication - Discrete 3.4V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | OVLEW5CB6 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 10.88 mm |
| Lens Color | Colorless |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1600 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
