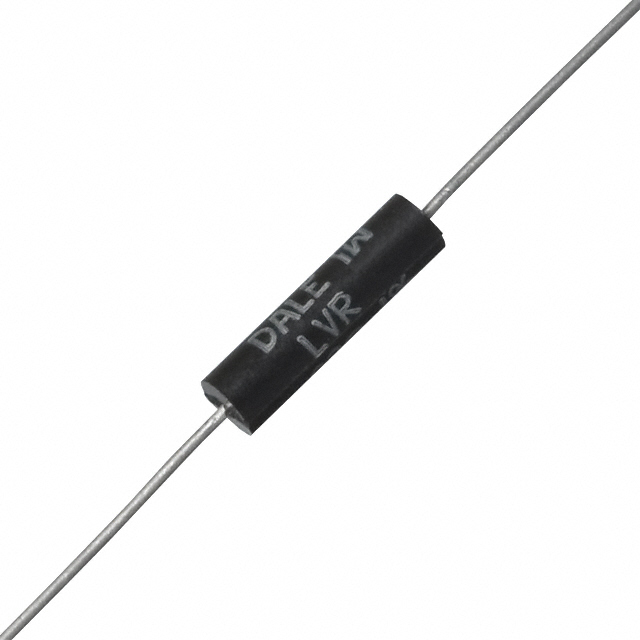

LVR01R0500FS70
ObsoleteVishay Dale
RES 0.05 OHM 1% 1W AXIAL WW
LVR01R0500FS70
ObsoleteVishay Dale
RES 0.05 OHM 1% 1W AXIAL WW
Description
General part information
LVR01R0500FS70
50 mOhms ±1% 1W Through Hole Resistor Axial Current Sense, Moisture Resistant Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | LVR01R0500FS70 |
|---|---|
| Composition | Wirewound |
| Features | Moisture Resistant, Current Sense |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 0.05 Ohms |
| Size / Dimension Diameter | 0.115 in |
| Size / Dimension Length | 0.427 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
