ANT-GPS-SE-SMA
ObsoleteTE Connectivity AMP Connectors
RF ANT 1.575GHZ MOD SMA MALE MAG
ANT-GPS-SE-SMA
ObsoleteTE Connectivity AMP Connectors
RF ANT 1.575GHZ MOD SMA MALE MAG
Description
General part information
ANT-GPS-SE-SMA

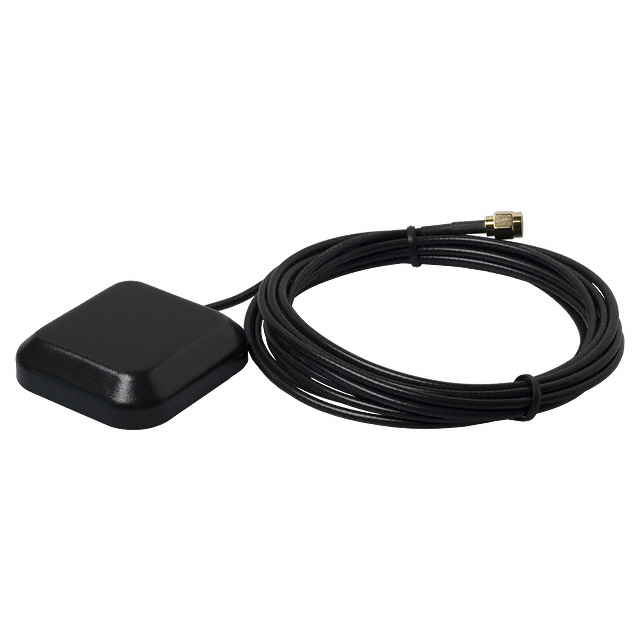

RF ANTENNA GPS Module SMA Male Magnetic, Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GPS-SE-SMA |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | 33 dBi |
| Height (Max) | 0.551 in |
| Mounting Type | Chassis Mount, Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 2 |
