1000802
ActiveKYOCERA AVX

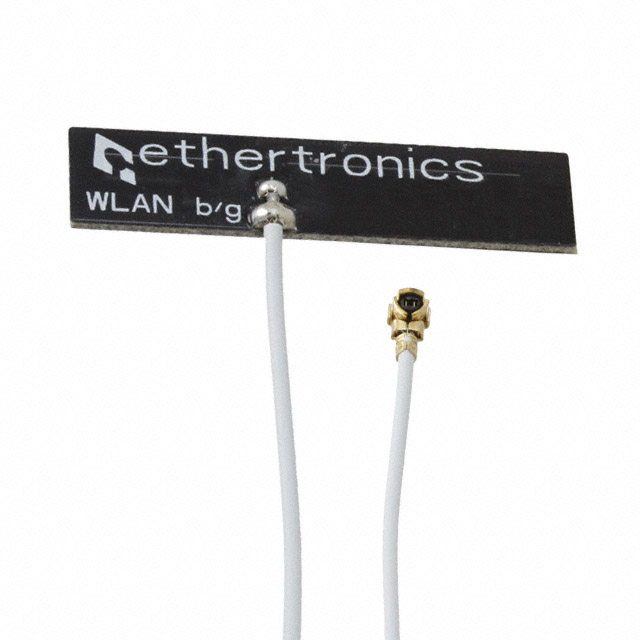

RF ANT 2.4GHZ PCB TRACE CAB ADH
1000802
ActiveKYOCERA AVX
RF ANT 2.4GHZ PCB TRACE CAB ADH
Description
General part information
1000802
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace U.FL (UMCC), IPEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000802 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, Zigbee™, WLAN, Bluetooth |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 3.5 dBi |
| Height (Max) | 0.087 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | IPEX MHF1, U.FL (UMCC) |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2.1 |
