SC2220-102
ActiveSignal Transformer
FIXED IND 1MH 150MA 14.42OHM SMD
SC2220-102
ActiveSignal Transformer
FIXED IND 1MH 150MA 14.42OHM SMD
Description
General part information
SC2220-102

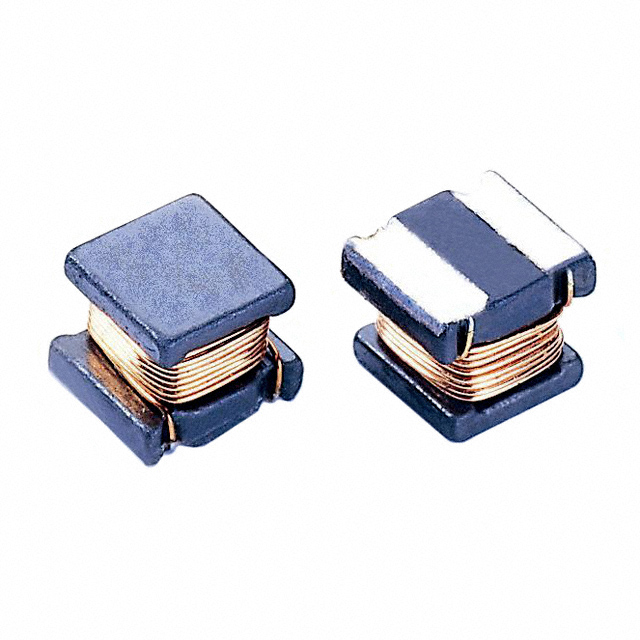

1 mH Unshielded Wirewound Inductor 150 mA 14.42Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC2220-102 |
|---|---|
| Current - Saturation (Isat) | 150 mA |
| Current Rating | 150 mA |
| DC Resistance (DCR) (Max) | 14.42 Ohm |
| Height - Seated (Max) | 0.197 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.209 in |
| Tolerance | 20 % |
| Type | Wirewound |
