T55Z157M6R3C0025
ActiveVishay Dale
CAP TANT POLYMER 150UF 6.3VDC Z CASE 20%( 7.3 X 4.3 X 1.8MM) INWARD L SMD 7343-19 0.025 OHM 105°C T/R
T55Z157M6R3C0025
ActiveVishay Dale
CAP TANT POLYMER 150UF 6.3VDC Z CASE 20%( 7.3 X 4.3 X 1.8MM) INWARD L SMD 7343-19 0.025 OHM 105°C T/R
Description
General part information
T55Z157M6R3C0025

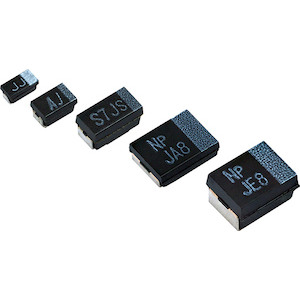

150 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 25mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T55Z157M6R3C0025 |
|---|---|
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.075 in |
| Manufacturer Size Code | Z |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
