LCCA31014-FT1
ActivePasternack
OUTDOOR RATED 7/16 DIN MALE TO 7
LCCA31014-FT1
ActivePasternack
OUTDOOR RATED 7/16 DIN MALE TO 7
Description
General part information
LCCA31014-FT1

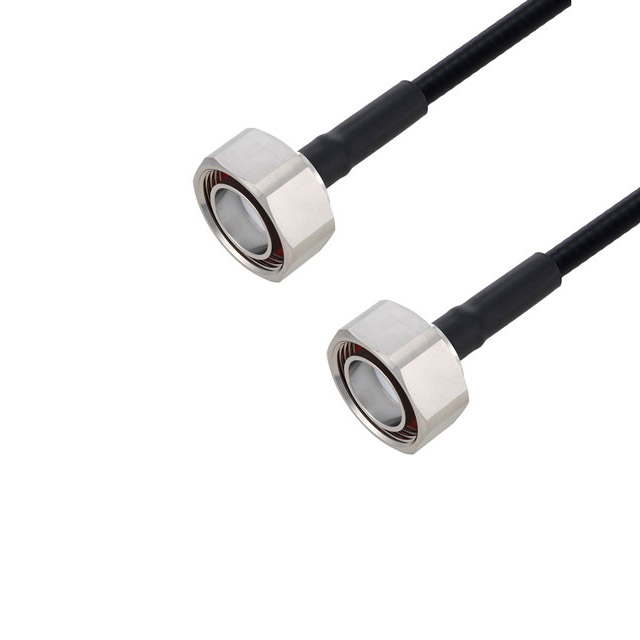

Cable Assembly Coaxial 7/16 DIN to 7/16 DIN SPO-250 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31014-FT1 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 7/16 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPO |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to 7/16 DIN |
