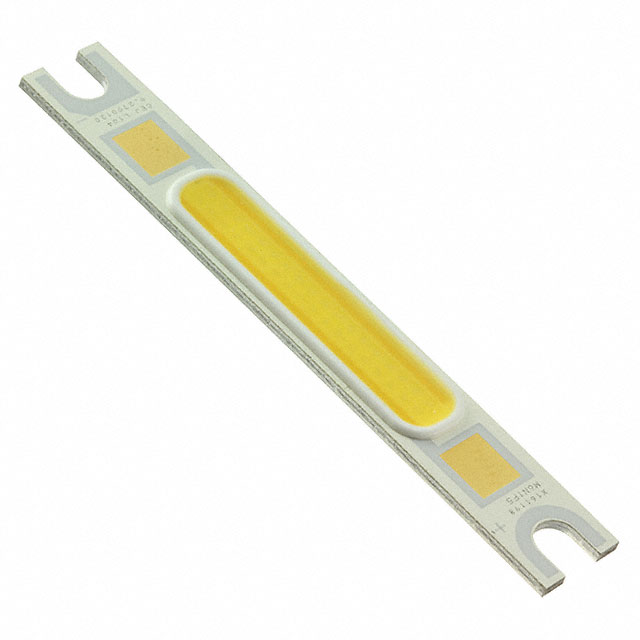

Specification	CL-L104-MC6N1-F5

CCT (K)	5000 K
CCT Description	3-Step MacAdam Ellipse
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index) (Typ)	85
Current - Max	1.44 A
Current - Test	700 mA
Height	1.35 mm
Lens Type	Flat
Lumens/Watt	101 lm/W
Luminous Flux (Typical)	650 lm
Size / Dimension Length	50 mm
Size / Dimension Width	7 mm
Temperature - Test	25 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	9.2 V

CL-L104 Series

Part	CCT (K)	CCT Description	Height	Current - Test	Voltage - Forward (Vf) (Typ)	Color	Type	Lens Type	Lumens/Watt	Luminous Flux (Typical)	Temperature - Test	Size / Dimension Length	Size / Dimension Width	CRI (Color Rendering Index)	Configuration	Current - Max	CRI (Color Rendering Index) (Typ)
Citizen Finedevice Co Ltd CL-L104-HC6N1-F5	5000 K	3-Step MacAdam Ellipse	1.35 mm	700 mA	9.2 V	Cool White	Chip On Board (COB)	Flat	88 lm/W	565 lm	25 °C	50 mm	7 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC3W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	350 mA	9.2 V	Neutral White	Chip On Board (COB)	Flat	99 lm/W	320 lm	25 °C	50 mm	7 mm		Rectangle	720 mA	85
Citizen Finedevice Co Ltd CL-L104-HC6W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	700 mA	9.2 V	Neutral White	Chip On Board (COB)	Flat	85 lm/W	550 lm	25 °C	50 mm	7 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC6L1-F5	3000 K	3-Step MacAdam Ellipse	1.35 mm	700 mA	9.2 V	Warm White	Chip On Board (COB)	Flat	95 lm/W	610 lm	25 °C	50 mm	7 mm		Rectangle	1.44 A	85
Citizen Finedevice Co Ltd CL-L104-C3N-F	5000 K		1.35 mm	350 mA	9.2 V	Cool White	Chip On Board (COB)	Flat	120 lm/W	385 lm	25 °C	50 mm	7 mm		Rectangle	720 mA	65
Citizen Finedevice Co Ltd CL-L104-MC3WW1-F5	3500 K	3-Step MacAdam Ellipse	1.35 mm	350 mA	9.2 V	Warm White	Chip On Board (COB)	Flat	98 lm/W	315 lm	25 °C	50 mm	7 mm		Rectangle	720 mA	85
Citizen Finedevice Co Ltd CL-L104-HC3W1-F5	4000 K	3-Step MacAdam Ellipse	1.35 mm	350 mA	9.2 V	Neutral White	Chip On Board (COB)	Flat	85 lm/W	275 lm	25 °C	50 mm	7 mm	90	Rectangle	720 mA
Citizen Finedevice Co Ltd CL-L104-HC6L1-F5	3000 K	3-Step MacAdam Ellipse	1.35 mm	700 mA	9.2 V	Warm White	Chip On Board (COB)	Flat	81 lm/W	520 lm	25 °C	50 mm	7 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-HC6WW1-F5	3500 K	3-Step MacAdam Ellipse	1.35 mm	700 mA	9.2 V	Warm White	Chip On Board (COB)	Flat	82 lm/W	530 lm	25 °C	50 mm	7 mm	90	Rectangle	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC3N1-F5	5000 K	3-Step MacAdam Ellipse	1.35 mm	350 mA	9.2 V	Cool White	Chip On Board (COB)	Flat	101 lm/W	325 lm	25 °C	50 mm	7 mm		Rectangle	720 mA	85
