111-024-103L001

Active

NorComp Inc.

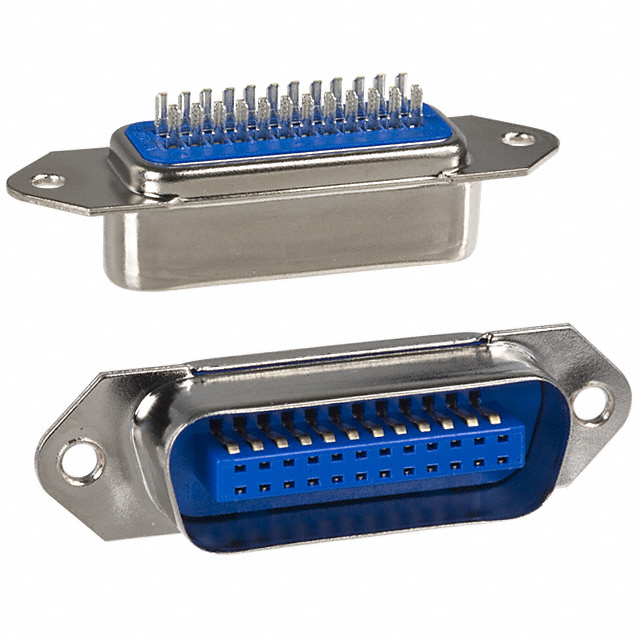

I/O CONNECTOR, 24 CONTACTS, PLUG, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

111-024-103L001

Active

NorComp Inc.

I/O CONNECTOR, 24 CONTACTS, PLUG, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111-024-103L001	111-024 Series

Connector Style	Center Strip Contacts	Outer Shroud Contacts, Center Strip Contacts
Connector Type	Plug	Receptacle, Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)	Through Hole, Free Hanging (In-Line)
Number of Positions	24	24
Number of Rows	2	2
Termination	-	Solder
Type	SCSI	SCSI

111-024 Series

I/O CONNECTOR, 24 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Part	Flange Feature	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Type	Connector Style	Mounting Type	Connector Type	Termination
NorComp Inc. 111-024-213L001	Housing/Shell (Unthreaded)	2	24	Gold	Flash	SCSI	Outer Shroud Contacts	Through Hole	Receptacle	Solder
NorComp Inc. 111-024-103L001	Housing/Shell (Unthreaded)	2	24	Gold	Flash	SCSI	Center Strip Contacts	Free Hanging (In-Line)	Plug
NorComp Inc. 111-024-113L001	Housing/Shell (Unthreaded)	2	24	Gold	Flash	SCSI	Center Strip Contacts	Through Hole	Plug	Solder
NorComp Inc. 111-024-203L001	Housing/Shell (Unthreaded)	2	24	Gold	Flash	SCSI	Outer Shroud Contacts	Free Hanging (In-Line)	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.22
		10	$ 3.83
		25	$ 3.63
		60	$ 3.54
		120	$ 3.37
		240	$ 2.95
		480	$ 2.87
		960	$ 2.45
		2400	$ 2.28
Newark	Each	100	$ 3.50
		250	$ 3.07
		500	$ 2.98
		1000	$ 2.54

Description

General part information

111-024 Series

The 111 series 0.085-inch Ribbon Type Connector with Dip solder/solder cup. It has nickel-plated steel shell with copper alloy contacts and a glass-filled thermoplastic insulator.
