GV3P50
ActiveTHERMAL MAGNETIC CIRCUIT BREAKER, GV3P, TESYS DECA SERIES, 50 A, 3 POLE, 690 VAC, DIN RAIL
GV3P50
ActiveTHERMAL MAGNETIC CIRCUIT BREAKER, GV3P, TESYS DECA SERIES, 50 A, 3 POLE, 690 VAC, DIN RAIL
Description
General part information
GV3P50

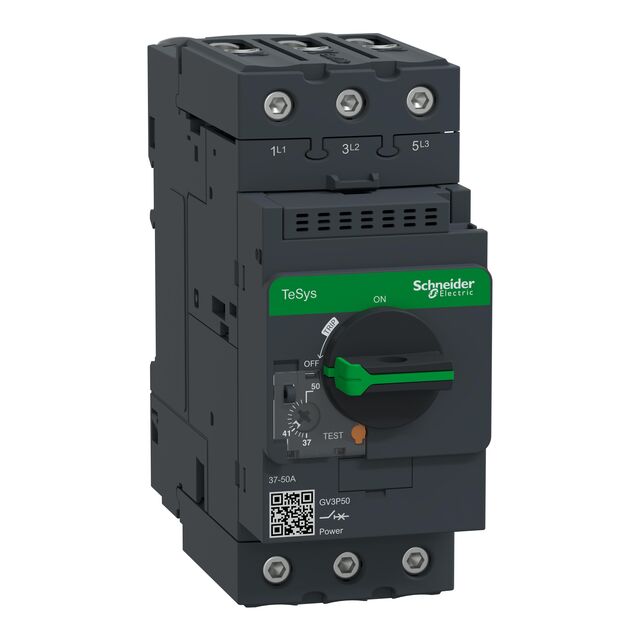

The GV3P50 is a 3-pole Thermal Magnetic Circuit Breaker with EverLink BTR connectors. The TeSys GV3 series rotary knob control circuit breaker features 55mm standard width provides an easier installation in the panel and space saving, rail DIN fixing, sturdiness and safety with 3 positions rotary handle, front face padlocking. The TeSys GV3 circuit breaker provides a more reliable connection quality of the tightening pressure applied to the cables remain stable, strong and long-lasting even under tough conditions.
Technical Specifications
Parameters and characteristics for this part
| Specification | GV3P50 |
|---|---|
| Actuator Type | Rotary |
| Approval Agency | UL60947-4-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, CSA C22.2 No 60947-4-1, EN 60947-4-1 |
| Breaker Type | Thermal Magnetic |
| Current Rating | 50 A |
| Illumination | None |
| Mounting Type | DIN Rail |
| Number of Poles | 3 |
| Voltage Rating - AC | 690 V |
